Footprinting
Footprinting is the first step in hacking or pentesting. It means gathering basic information about a target (like domains, IP addresses, and public records) to understand its structure and find possible weak points. This process helps ethical hackers plan tests and helps defenders learn what information is exposed.

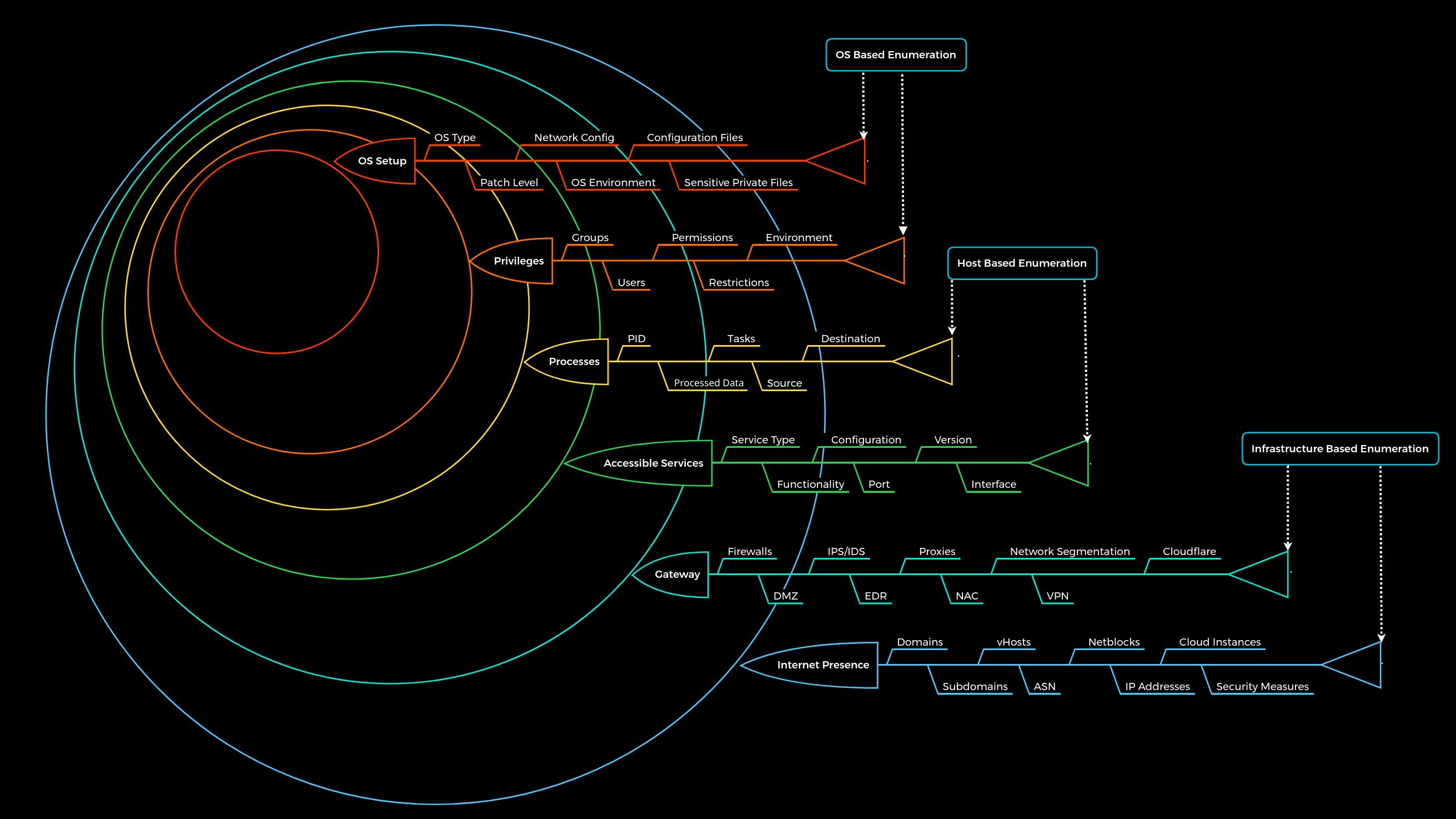

Enumeration Methodology
External Recon
After obtaining the domain, we can perform passive reconnaissance to gather public information about it (e.g., kakarot.info).
1- First, let’s examine the SSL certificate for the domain.
- We can use crt.sh.
- We can also output the results in JSON format !
1
root@kakarot$ curl -s https://crt.sh/\?q\=kakarot.info\&output\=json | jq .
- We can have them filtered by the unique subdomains !
1
root@kakarot$ curl -s https://crt.sh/\?q\=kakarot.info\&output\=json | jq . | grep name | cut -d":" -f2 | grep -v "CN=" | cut -d'"' -f2 | awk '{gsub(/\\n/,"\n");}1;' | sort -u > subdomainlist.lst
2- Next, we can identify the hosts directly accessible from the Internet.
1
2
3
4
5
6
root@kakarot$ for i in $(cat subdomainlist.lst);do host $i | grep "has address" | grep kakarot.info | cut -d" " -f1,4;done
kakarot.info 35.157.26.135
blog.kakarot.info 63.176.8.218
dev.kakarot.info 63.176.8.218
s3-website-us-west-2.amazonaws.com 35.157.26.135 # It was explained in step five !
3- Let’s go to generate a list of IP addresses and run them through Shodan.
1
root@kakarot$ for i in $(cat subdomainlist.lst);do host $i | grep "has address" | grep kakarot.info | cut -d" " -f4 >> ip-addresses.txt;done #IPs List
1
root@kakarot$ for i in $(cat ip-addresses.txt);do shodan host $i;done #Running Shodan
4- We can display all the available DNS records where we might find more hosts.
1
root@kakarot$ dig any kakarot.info
You can find sensitive information in some DNS records, such as
TXT records!
5- Cloud Resources.
When we identified the hosts accessible from the Internet, we have already seen that one IP address belongs to the s3-website-us-west-2.amazonaws.com server.
We can use the Google Dorks inurl: and intext: to narrow our search to specific terms. For example:
1
inurl:amazonaws.com intext:kakarot #For S3.
1
inurl:blob.core.windows.net intext:kakarot #For Azure Blobs
Sometimes the site loads images, JavaScript, or CSS directly from the cloud. Once we open the HTML code of a website, we see links like:
1
2
3
<SNIP>
<link rel="preconnect" href="https://kakarot.blob.core.windows.net">
<SNIP>
domain.glass can be used to discover
third-party providersassociated with adomain nameand to gather additional information about those providers. If a provider usescloud hosting(e.g., Azure Blob or AWS S3), it is advisable to then search databases such as GrayHatWarfare for publicly exposed files that may have been uploaded accidentally
6- Staff.
We can gather valuable information about employees through LinkedIn or Xing, as well as insights about companies through job posts.
FTP
FTP (File Transfer Protocol) is a standard internet protocol for transferring files between computers over a network, such as the internet.
How FTP works In details ?
How three-way handshake works ?
Active mode:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
NETWORK
┌────────────────────────────┬────────────────────────────┐
│ Client │ FTP Server │
│ IP = 192.168.1.10 │ IP = 203.0.113.5 │
│ control src port = 40000 │ control port = 21 │
│ data listen port = 12346 │ (conventional) data src = │
│ │ port 20 (server-side) │
└────────────────────────────┴────────────────────────────┘
(A) Establish Control Channel (TCP three-way handshake)
Client:40000 -> Server:21 : SYN
Server:21 -> Client:40000 : SYN,ACK
Client:40000 -> Server:21 : ACK
==> Control channel established (Client:40000 <--> Server:21)
(B) FTP control conversation (over control channel)
Client -> Server (control):
USER kakarot
Server -> Client (control):
331 Password required for alice
Client -> Server (control):
PASS K4k4r07
Server -> Client (control):
230 User logged in, proceed
(C) Prepare for Active data transfer
1. Client opens a local listening socket for data:
- local IP = 192.168.1.10, local data port = 12346
2. Client informs server which IP:port to connect to using the PORT command:
Syntax: PORT h1,h2,h3,h4,p1,p2
(where port = p1*256 + p2)
Example:
port 12346 => p1 = 48, p2 = 58 (because 48*256 + 58 = 12346)
Client sends (over control channel):
PORT 192,168,1,10,48,58
3. Server replies (control):
200 PORT command successful
(D) Client requests file (control)
Client -> Server (control):
RETR report.pdf
Server -> Client (control):
150 Opening data connection for report.pdf
(E) Server initiates Data Channel (Active mode)
Server:20 -> Client:12346 : SYN (server initiates)
Client:12346 -> Server:20 : SYN,ACK
Server:20 -> Client:12346 : ACK
==> Data channel established (Server:20 -> Client:12346)
Server sends file bytes over data channel (binary stream).
When complete:
Server (control) -> Client (control): 226 Transfer complete
Server closes data connection (TCP FIN/ACK sequence).
(F) Session termination (control)
Client -> Server (control): QUIT
Server -> Client (control): 221 Goodbye
Close control TCP connection.
First, the
clientestablishes acontrol channelto theserverthroughTCP port 21, which is used to send login credentials, commands, and receive status codes.
Next, a separatedata channelis created for transferring files betweenthe clientandthe server. InActive mode, the server usesTCP port 20to connect back to the client. InPassive mode, the server provides arandom port numberand the client connects to that port instead.
In Active FTP, the direction of creating a Data Channel is from Server to Client.
Passive mode:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
NETWORK
┌────────────────────────────┬────────────────────────────┐
│ Client │ FTP Server │
│ IP = 192.168.1.10 │ IP = 203.0.113.5 │
│ control src port = 40000 │ control port = 21 │
│ data src port = 40001 │ passive data port = 49152 │
└────────────────────────────┴────────────────────────────┘
(A) Establish Control Channel (TCP three-way handshake)
Client:40000 -> Server:21 : SYN
Server:21 -> Client:40000 : SYN,ACK
Client:40000 -> Server:21 : ACK
==> Control channel established (Client:40000 <--> Server:21)
(B) FTP control conversation (over control channel)
Client -> Server (control):
USER alice
Server -> Client (control):
331 Password required for alice
Client -> Server (control):
PASS mySecretPassword
Server -> Client (control):
230 User logged in, proceed
(C) Prepare for Passive data transfer
1. Client requests passive mode:
Client -> Server (control):
PASV
2. Server opens a random ephemeral port for data (example: 49152).
Server replies with:
227 Entering Passive Mode (203,0,113,5,192,0)
(calculated: 192*256 + 0 = 49152)
3. Client learns server's IP + passive port from the reply.
(D) Client requests file (control)
Client -> Server (control):
RETR report.pdf
Server -> Client (control):
150 Opening data connection for report.pdf
(E) Client initiates Data Channel (Passive mode)
Client:40001 -> Server:49152 : SYN
Server:49152 -> Client:40001 : SYN,ACK
Client:40001 -> Server:49152 : ACK
==> Data channel established (Client:40001 -> Server:49152)
Server sends file bytes over this data channel (binary stream).
When complete:
Server (control) -> Client (control): 226 Transfer complete
Client and Server close the data connection (TCP FIN/ACK sequence).
(F) Session termination (control)
Client -> Server (control): QUIT
Server -> Client (control): 221 Goodbye
Close control TCP connection.
In Active FTP, the direction of creating a Data Channel is from Client to server.
Install & Configure FTP Server
A commonly used FTP server on Linux distributions is vsFTPd, whose default configuration file is located at:
1
root@kakarot$ /etc/vsftpd.conf
You can install vsFTPd server with:
1
root@kakarot$ sudo apt install vsftpd
vsFTPd Config File
We can Configuring the FTP Server with the vsftp.conf file.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
root@kakarot$ cat /etc/vsftpd.conf | grep -v '#'
listen=NO
listen_ipv6=YES
anonymous_enable=NO
local_enable=YES
dirmessage_enable=YES
use_localtime=YES
xferlog_enable=YES
connect_from_port_20=YES
secure_chroot_dir=/var/run/vsftpd/empty
pam_service_name=vsftpd
rsa_cert_file=/etc/ssl/certs/ssl-cert-snakeoil.pem
rsa_private_key_file=/etc/ssl/private/ssl-cert-snakeoil.key
ssl_enable=NO
FTPUSERS file
The text file ftpusers contains a list of users that may not log in using the File Transfer Protocol (FTP) server daemon. This file is used not merely for system administration purposes but also for improving security within a TCP/IP networked environment.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
root@kakarot$ cat /etc/ftpusers
# /etc/ftpusers: list of users disallowed FTP access. See ftpusers(5).
root
daemon
bin
sys
sync
games
man
lp
mail
news
uucp
nobody
Optional & Dangerous Settings
With vsFTPd, the optional settings that can be added to the configuration file for the anonymous login look like this:
| Setting | Description |
|---|---|
anonymous_enable=YES |
Allows anyone to log in without a system account (security risk if combined with write permissions). |
anon_upload_enable=YES |
Permit anonymous users to upload files (very risky — enables writable anonymous directories). |
anon_mkdir_write_enable=YES |
Allow anonymous users to create directories (increases abuse risk). |
no_anon_password=YES |
Don’t prompt anonymous users for a password (typical when allowing fully anonymous access). |
anon_root=/path/to/dir |
Chroot or restrict anonymous users to this directory (use to limit exposure). |
write_enable=YES |
Globally allow FTP write commands (STOR, DELE, RNFR, RNTO, MKD, RMD, APPE, etc.). Use carefully — enables uploads/deletions. |
FTP Login & Commands
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
root@kakarot$ ftp <target-ip> #Anonymous Login
<SNIP>
ftp> status #Displays the current status of FTP connections
<SNIP>
ftp> debug #Toggles debugging (default = OFF)
<SNIP>
ftp> trace #Toggles packet tracing (default = OFF)
<SNIP>
ftp> ls #Displays an abbreviated list of a remote directory’s files and subdirectories
<SNIP>
ftp> ls -R #Recursive Listing
<SNIP>
ftp> get Desktop\ <filename> #Download a File
<SNIP>
ftp> quit #Ends the FTP session with the remote computer and exits ftp (same as “bye”)
221 Goodbye.
ftp> put file.txt #Upload file in the current folder to the FTP server
| Setting | Description |
|---|---|
dirmessage_enable=YES |
Show a short message (e.g., .message) to the user when they enter a directory. Useful for instructions or notices. |
chown_uploads=YES |
After an anonymous upload, change the uploaded file’s owner to the user specified by chown_username. |
chown_username=username |
The system account that becomes the owner of files uploaded by anonymous users (must be an actual system user). |
local_enable=YES |
Allow local (system) user accounts to authenticate and use FTP. |
chroot_local_user=YES |
Restrict local users to their home directory (jail them in ~/), preventing access outside their home. |
chroot_list_enable=YES |
Enable a chroot list file — controls which local users are placed in (or excluded from) the chroot jail (depending on distro/config). |
hide_ids=YES |
Replace real UID/GID info in directory listings with a generic label (e.g., ftp) to hide owner/group details from clients. |
ls_recurse_enable=YES |
Allow recursive directory listings (e.g., ls -R) so clients can list subdirectories in one command. |
Download All Available Files
We can download all accessible files and folders at once, which is handy for large directory structures. However, bulk downloads like this are unusual and may trigger security alerts, since companies rarely need to grab all content in one go.
1
root@kakarot$ wget -m --no-passive ftp://anonymous:anonymous@<target-ip>
Wget will create a directory with the name of the IP address of our target. All downloaded files are stored there, which we can then inspect locally with :
1
root@kakarot$ tree .
Footprinting the Service with nmap
Update NSE DB, Locate scripts & Scan target
1
root@kakarot$ sudo nmap --script-updatedb
We can find all the NSE scripts are located in:
1
root@kakarot$ /usr/share/nmap/scripts/
Or we can use find to locate them:
1
root@kakarot$ find / -type f -name ftp* 2>/dev/null/ | grep 'scripts'
Now, let’s scan our target using nmap:
1
root@kakarot$ sudo nmap -sV -p21 -sC -A <target-ip>
Service Interaction & Secure Connection
We can, of course, use other applications such as netcat or telnet to interact with the FTP server.
1
root@kakarot$ nc -nv <target-ip> 21
1
root@kakarot$ telnet <target-ip> 21
OpenSSL can be used to add TLS/SSL encryption to an FTP session, allowing secure transmission of credentials and commands. By using commands like:
1
root@kakarot$ openssl s_client -connect 10.129.14.136:21 -starttls ftp
To better understand what we explained and what we will explain in the next protocols, I highly recommend installing and configuring the servers by yourselves and trying the dangerous settings. Also, don't forget to test everything with Wireshark !
Happy learning ☕
SMB
SMB, or Server Message Block, is a network client-server communication protocol that provides shared access to files, printers, and other network resources, operating as an authenticated mechanism for sharing and resource access. It was first created by IBM, then improved by Microsoft as CIFS, and became standard in Windows. The old version SMBv1 used NetBIOS on ports 137–139, while modern SMBv2/3 work directly on port 445, with better performance and security. On Linux, the open-source project Samba provides SMB support: smbd shares files and printers, while nmbd manages old NetBIOS names and workgroups. In a NetBIOS network, every computer needs a unique name; this can be done locally, or through a central service called NBNS, which later evolved in Windows into WINS (Windows Internet Name Service) for easier name management. Since Samba 3, Linux can join Windows Active Directory, and since Samba 4, it can even act as a Domain Controller. Today, SMB is the bridge that lets Windows and Linux work together, while NetBIOS and WINS are mostly legacy tools used only for older systems.
In IP networks, SMB relies on the TCP protocol, which establishes a connection through a three-way handshake between the client and server. The TCP specifications also manage the subsequent data transfer. Examples
Install & Configure SMB Server
Follow this steps to install, setup and configure your samba server, also don’t forget take a look on this settings.
Common [global] Settings
- workgroup = WORKGROUP
- server string = File Server
- log file = /var/log/samba/log.%m
- max log size = 1000
- logging = file
- server role = standalone
- security = user
- map to guest = bad user
- usershare allow guests = yes
- unix password sync = yes
- encrypt passwords = yes
- wins support = no
- dns proxy = yes
- panic action = /usr/share/samba/panic-action %d
Common [shares] Settings
- [sharename] = documents
- path = /srv/samba/docs
- comment = Shared Documents
- browseable = yes
- read only = no
- writable = yes
- guest ok = yes
- valid users = alice bob
- invalid users = eve
- write list = alice
- admin users = admin
- create mask = 0644
- directory mask = 0755
- force user = sambauser
- force group = sambagroup
- public = yes
Dangerous Settings
- browseable = yes
- read only = no
- writable = yes
- guest ok = yes
- enable privileges = yes
- create mask = 0777
- directory mask = 0777
- logon script = script.sh
- magic script = script.sh
- magic output = script.out
Learn more about these settings here !
1
root@kakarot$ /etc/samba/smb.conf #cofig file.
SMBclient
smbclient — ftp-like client to access SMB/CIFS resources on servers.
1
root@kakarot$ smbclient -N -L //<IP>
-N: display a list of the server’s shares.
-L: null session
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
root@kakarot$ smbclient //<IP>/<ShareName> #If guest ok = yes
Enter WORKGROUP\<username>'s password:
Anonymous login successful
Try "help" to get a list of possible commands.
smb: \> help
? allinfo altname archive backup
blocksize cancel case_sensitive cd chmod
chown close del deltree dir
du echo exit get getfacl
geteas hardlink help history iosize
lcd link lock lowercase ls
l mask md mget mkdir
more mput newer notify open
posix posix_encrypt posix_open posix_mkdir posix_rmdir
posix_unlink posix_whoami print prompt put
pwd q queue quit readlink
rd recurse reget rename reput
rm rmdir showacls setea setmode
scopy stat symlink tar tarmode
timeout translate unlock volume vuid
wdel logon listconnect showconnect tcon
tdis tid utimes logoff ..
!
smb: \> ls
. D 0 Sep 22 10:00:00 2025
.. D 0 Wed Sep 22 10:00:00 2025
note.txt N 102 Sun Sep 19 10:00:00 2025
smb: \> get note.txt
the
(!<cmd>)will execute a shell locally and run the specified shell command. If no command is specified, a local shell will be run.
The smbstatus command give us a report on current Samba connections.
Footprinting the Service
Scanning the service using nmap.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
root@kakarot$ sudo nmap <target-ip> -sV -sC -p139,445
Starting Nmap 7.92 ( https://nmap.org ) at 2025-00-00 00:00 EDT
Nmap scan report for <targer-ip>
Host is up (0.00043s latency).
PORT STATE SERVICE
139/tcp open netbios-ssn
445/tcp open microsoft-ds
Host script results:
|_nbstat: NetBIOS name: ME, NetBIOS user: <unknown>, NetBIOS MAC: <unknown> (unknown)
| smb2-security-mode:
| 3.1.1:
|_ Message signing enabled but not required
| smb2-time:
| date: 2025-00-00T00:00:00
|_ start_date: N/A
Nmap done: 1 IP address (1 host up) scanned in 28.58 seconds
When we scan with Nmap, sometimes we do not get much information about SMB. In this case, we can use other tools like rpcclient. This tool talks to the server using MS-RPC over SMB. SMB is like the road that carries the data, and RPC is the method that asks the server to run special functions. For example, with RPC we can ask the server to list all the shares using a function called NetShareEnumAll. This helps us to get more details about the system than Nmap gives.
1
root@kakarot$ rpcclient -U "" <target-ip> # starting an anonymous rpc session via smb.
1
root@kakarot$ rpcclient -U <username>%<password> <target-ip> # connect with credentials.
Here is some common rpc queries 👇
| Query | Description |
|---|---|
| srvinfo | Server query info. |
| enumdomains | Enumerate all domains deployed in the network. |
| querydominfo | Query domain info. |
| netshareenumall | Enumerate all shares. |
| netsharegetinfo [share] | Provides information about a specific share. |
| enumdomusers | Enumerate domain users. |
| queryuser [RID] | Provides information about a specific user. |
| enumdomgroups | Enumerate domain groups. |
| querygroup [RID] | Provides information about a specific group. |
| querygroupmem [RID] | Provides information about group membership. |
| lookupnames [name] | Convert names to SIDs. |
| lookupsids [SID] | Convert SIDs to names. |
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
root@kakarot$ rpcclient -U "" <target-ip>
Password for [SAMBA\]:
rpcclient $> srvinfo
KAKAROT Wk Sv PrQ Unx NT SNT KAKAROT SMB SERVER
platform_id : 500
os version : 6.1
server type : 0x809a03
rpcclient $> enumdomains
name:[KAKAROT] idx:[0x0]
name:[Builtin] idx:[0x1]
rpcclient $> querydominfo
Domain: WORKGROUP
Server: KAKAROT
Comment: KAKAROT SMB SERVER
Total Users: 2
Total Groups: 0
Total Aliases: 0
Sequence No: 1758155858
Force Logoff: -1
Domain Server State: 0x1
Server Role: ROLE_DOMAIN_PDC
Unknown 3: 0x1
rpcclient $> netshareenumall
netname: HR
remark: Welcome To HR Files !
path: C:\share\HR
password:
netname: Clients
remark: Welcome All To Clients Files !
path: C:\share\Clients
password:
netname: IPC$
remark: IPC Service (KAKAROT SMB SERVER)
path: C:\tmp
password:
rpcclient $> netsharegetinfo Clients
netname: Clients
remark: Welcome All To Clients Files !
path: C:\share\Clients
password:
type: 0x0
perms: 0
max_uses: -1
num_uses: 1
rpcclient $> enumdomusers
user:[peter] rid:[0x3e8]
user:[neo] rid:[0x3e9]
rpcclient $> queryuser 0x3e8
User Name : peter
Full Name :
Home Drive : \\KAKAROT\peter
Dir Drive :
Profile Path: \\KAKAROT\peter\profile
Logon Script:
Description :
Workstations:
Comment :
Remote Dial :
Logon Time : Wed, 31 Dec 1969 19:00:00 EST
Logoff Time : Wed, 06 Feb 2036 10:06:39 EST
Kickoff Time : Wed, 06 Feb 2036 10:06:39 EST
Password last set Time : Wed, 17 Sep 2025 08:59:26 EDT
Password can change Time : Wed, 17 Sep 2025 08:59:26 EDT
Password must change Time: Wed, 13 Sep 30828 22:48:05 EDT
unknown_2[0..31]...
user_rid : 0x3e8
group_rid: 0x201
acb_info : 0x00000010
fields_present: 0x00ffffff
logon_divs: 168
bad_password_count: 0x00000000
logon_count: 0x00000000
padding1[0..7]...
logon_hrs[0..21]...
rpcclient $> queryuser 0x3e9
User Name : neo
Full Name :
Home Drive : \\KAKAROT\neo
Dir Drive :
Profile Path: \\KAKAROT\neo\profile
Logon Script:
Description :
Workstations:
Comment :
Remote Dial :
Logon Time : Wed, 31 Dec 1969 19:00:00 EST
Logoff Time : Wed, 06 Feb 2036 10:06:39 EST
Kickoff Time : Wed, 06 Feb 2036 10:06:39 EST
Password last set Time : Wed, 17 Sep 2025 08:59:42 EDT
Password can change Time : Wed, 17 Sep 2025 08:59:42 EDT
Password must change Time: Wed, 13 Sep 30828 22:48:05 EDT
unknown_2[0..31]...
user_rid : 0x3e9
group_rid: 0x201
acb_info : 0x00000010
fields_present: 0x00ffffff
logon_divs: 168
bad_password_count: 0x00000000
logon_count: 0x00000000
padding1[0..7]...
logon_hrs[0..21]...
rpcclient $> querygroup 0x201
Group Name: None
Description: Ordinary Users
Group Attribute:7
Num Members:0
Some commands may be blocked for a user. But
queryuser <RID>often works. We can try manyRIDswithrpcclientto find which are assigned. For example, run a simpleBash for-loopthat callsrpcclientfor eachRIDand save the replies.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
root@kakarot$ for i in $(seq 500 1100);do rpcclient -N -U "" <target-ip> -c "queryuser 0x$(printf '%x\n' $i)" | grep "User Name\|user_rid\|group_rid" && echo "";done
User Name : nobody
user_rid : 0x1f5
group_rid: 0x201
User Name : peter
user_rid : 0x3e8
group_rid: 0x201
User Name : neo
user_rid : 0x3e9
group_rid: 0x201
samrdump.py Python script from Impacket is An alternative to this !
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
root@kakarot$ python3 samrdump.py <target-ip>
Impacket v0.12.0 - Copyright Fortra, LLC and its affiliated companies
[*] Retrieving endpoint list from <IP>
Found domain(s):
. KAKAROT
. Builtin
[*] Looking up users in domain KAKAROT
Found user: peter, uid = 1000
Found user: neo, uid = 1001
peter (1000)/FullName:
peter (1000)/AdminComment:
peter (1000)/UserComment:
peter (1000)/PrimaryGroupId: 513
peter (1000)/BadPasswordCount: 0
peter (1000)/LogonCount: 0
peter (1000)/PasswordLastSet: 2025-09-17 08:59:26
peter (1000)/PasswordDoesNotExpire: False
peter (1000)/AccountIsDisabled: False
peter (1000)/ScriptPath:
neo (1001)/FullName:
neo (1001)/AdminComment:
neo (1001)/UserComment:
neo (1001)/PrimaryGroupId: 513
neo (1001)/BadPasswordCount: 0
neo (1001)/LogonCount: 0
neo (1001)/PasswordLastSet: 2025-09-17 08:59:42
neo (1001)/PasswordDoesNotExpire: False
neo (1001)/AccountIsDisabled: False
neo (1001)/ScriptPath:
[*] Received 2 entries.
Other tools can get the same info we fetched with
rpcclient. For example, SMBMap and NetExec(https://www.netexec.wiki/) are popular and useful for enumerating SMB services.
1
2
3
4
5
6
7
8
9
10
11
12
root@kakarot$ smbmap -H <target-ip>
[*] Detected 1 hosts serving SMB
[*] Established 1 SMB connections(s) and 0 authenticated session(s)
[+] IP: <IP>:445 Name: <IP> Status: NULL Session
Disk Permissions Comment
---- ----------- -------
HR NO ACCESS Welcome To HR Files !
Clients READ ONLY Welcome All To Clients Files !
IPC$ NO ACCESS IPC Service (KAKAROT SMB SERVER)
[*] Closed 1 connections
1
root@kakarot$ nxc smb <target-ip> --shares -u '' -p ''
enum4linux-ng is a useful tool based on the old enum4linux. It can return a lot of information.
Tool Installation
1
2
3
root@kakarot$ git clone https://github.com/cddmp/enum4linux-ng.git
root@kakarot$ cd enum4linux-ng
root@kakarot$ pip3 install -r requirements.txt
Running The Tool
1
root@kakarot$ ./enum4linux-ng.py <target-ip> -A
-A: Do all simple enumeration including nmblookup (-U -G -S -P -O -N -I -L).
NFS
Network File System NFS is a distributed file system protocol originally developed by Sun Microsystems in 1984, allowing a user on a client computer to access files over a network in a manner similar to how local storage is accessed.
NFS version 4.1 (defined in RFC 8881) is a way for computers to share files over a network, even using many servers at the same time (called pNFS) and more than one network path multipathing. It uses only one port 2049, which makes it easier to work through firewalls. NFS works using ONC-RPC (also called SUN-RPC) to send commands between computers, and it uses XDR to share data in a way that all systems can understand. NFS itself does not handle login or permissions directly; the server converts user info from the client into the file system format to decide access.
Learn more about NFS history !
Install & Configure NFS Server
First, Let’s update our linux:
1
root@kakarot$ sudo apt update
Now, we can install the NFS server:
1
root@kakarot$ sudo apt install nfs-kernel-server
NFSis relatively easy to set up because it has fewer configuration options thanFTPorSMB. The/etc/exportsfile lists the physical filesystems on the NFS server that clients can access. This Exports Table also shows which options are allowed, helping us understand what features and permissions are available.
Default Configuration
1
2
3
4
5
6
7
8
9
10
11
root@kakarot$ cat /etc/exports
# /etc/exports: the access control list for filesystems which may be exported
# to NFS clients. See exports(5).
#
# Example for NFSv2 and NFSv3:
# /srv/homes hostname1(rw,sync,no_subtree_check) hostname2(ro,sync,no_subtree_check)
#
# Example for NFSv4:
# /srv/nfs4 gss/krb5i(rw,sync,fsid=0,crossmnt,no_subtree_check)
# /srv/nfs4/homes gss/krb5i(rw,sync,no_subtree_check)
#
Common Options
| Option | Description |
|---|---|
| rw | Read and write allowed. The client can read files and also change or delete them. |
| ro | Read only. The client can only read files, not change or delete them. |
| sync | Writes are saved to disk first, then server replies. Safer but slower. |
| async | Server may reply before saving to disk. Faster but risk of losing data on crash. |
| secure | Client must use low-numbered ports (<1024). Slightly more secure. |
| insecure | Client may use high-numbered ports (>1024). Less secure but sometimes needed. |
| no_subtree_check | Server does not always check file is inside the exported subtree. Fewer errors and better speed when files move, but skips a safety check. |
| root_squash | Map client root to an anonymous user (e.g. nobody). Stops remote root from being root on the server. |
Example !
1
2
root@kakarot$ echo '/mnt/nfs 172.15.10.0/24(ro,sync,no_subtree_check,insecure)' >> /etc/exports
root@kakarot$ echo '/home/kakarot 172.15.10.113(rw,async,no_subtree_check,secure)' >> /etc/exports
1
root@kakarot$ sudo systemctl restart nfs-kernel-server
1
2
3
4
root@kakarot$ exportnfs
/home/kakarot 172.16.10.143
/mnt/nfs 172.16.10.0/24
Dangerous Settings
| Option | Description |
|---|---|
| rw | Read and write allowed. The client can change or delete files. This is dangerous if the client is not trusted. |
| insecure | Client may use high ports (>1024). Easier for normal programs to connect, so less secure. |
| nohide | Make a nested exported folder act like it is part of the parent export. Can give surprising access to hidden data. |
| no_root_squash | Remote root becomes real root on the server. Gives full control to the remote root user — very dangerous. |
Footprinting the Service
When scanning for
NFS, check ports111and2049. You can also ask theRPC servicefor more info about theNFS serverand the host.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
root@kakarot$ sudo nmap <target-ip> -p111,2049 -sC -sV
Starting Nmap 7.92 ( https://nmap.org ) at 2025-01-01 00:00 EDT
Nmap scan report for <target-ip>
Host is up (0.00032s latency).
PORT STATE SERVICE
111/tcp open rpcbind
| rpcinfo:
| program version port/proto service
| 100000 2,3,4 111/tcp rpcbind
| 100000 2,3,4 111/udp rpcbind
| 100000 3,4 111/tcp6 rpcbind
| 100000 3,4 111/udp6 rpcbind
| 100003 3,4 2049/tcp nfs
| 100003 3,4 2049/tcp6 nfs
| 100005 1,2,3 35131/tcp6 mountd
| 100005 1,2,3 35521/tcp mountd
| 100005 1,2,3 50037/udp mountd
| 100005 1,2,3 56887/udp6 mountd
| 100021 1,3,4 33923/tcp6 nlockmgr
| 100021 1,3,4 36601/udp nlockmgr
| 100021 1,3,4 40864/udp6 nlockmgr
| 100021 1,3,4 43855/tcp nlockmgr
| 100024 1 40439/udp status
| 100024 1 44791/tcp status
| 100024 1 54216/udp6 status
| 100024 1 54757/tcp6 status
| 100227 3 2049/tcp nfs_acl
|_ 100227 3 2049/tcp6 nfs_acl
2049/tcp open nfs_acl
MAC Address: <MAC> (VMware)
Nmap done: 1 IP address (1 host up) scanned in 0.71 seconds
We can use also the rpcinfo tool.
1
root@kakarot$ rpcinfo -p <target-ip>
-p: Host.
The
rpcinfoscript forNmapasks thetargetfor alist of RPC services. It shows each service name, a short description, and theport numberit uses. This helps us check that theNFS shareand its related services are running on the right ports.Nmapalso has otherNFS scripts. These scripts can try to read the exported shares and show simple information, for example the files in a share or the disk usage.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
root@kakarot$ sudo nmap <target-ip> -p111,2049 -sV --script nfs\*
Host is up (0.026s latency).
PORT STATE SERVICE VERSION
111/tcp open rpcbind 2-4 (RPC #100000)
| rpcinfo:
| program version port/proto service
| 100000 2,3,4 111/tcp rpcbind
| 100000 2,3,4 111/udp rpcbind
| 100000 3,4 111/tcp6 rpcbind
| 100000 3,4 111/udp6 rpcbind
| 100003 3,4 2049/tcp nfs
| 100003 3,4 2049/tcp6 nfs
| 100005 1,2,3 35131/tcp6 mountd
| 100005 1,2,3 35521/tcp mountd
| 100005 1,2,3 50037/udp mountd
| 100005 1,2,3 56887/udp6 mountd
| 100021 1,3,4 33923/tcp6 nlockmgr
| 100021 1,3,4 36601/udp nlockmgr
| 100021 1,3,4 40864/udp6 nlockmgr
| 100021 1,3,4 43855/tcp nlockmgr
| 100024 1 40439/udp status
| 100024 1 44791/tcp status
| 100024 1 54216/udp6 status
| 100024 1 54757/tcp6 status
| 100227 3 2049/tcp nfs_acl
|_ 100227 3 2049/tcp6 nfs_acl
| nfs-showmount:
| /mnt/nfs 172.16.10.0/24
|_ /home/kakarot 172.16.10.143
| nfs-ls: Volume /mnt/nfs
| access: Read Lookup NoModify NoExtend NoDelete NoExecute
| PERMISSION UID GID SIZE TIME FILENAME
| rwxr-xr-x 0 0 4096 2025-09-18T17:00:26 .
| ?????????? ? ? ? ? ..
| rw-r--r-- 0 0 37 2025-09-18T17:00:26 report.txt
|_
2049/tcp open nfs_acl 3 (RPC #100227)
MAC Address: 00:0C:29:FD:CC:20 (VMware)
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 7.33 seconds
1
2
3
4
5
6
root@kakarot$ showmount --export <target-ip> #Show Available NFS Shares.
Export list for <target-ip>:
/mnt/nfs 172.15.10.0/24
/home/kakarot 172.15.10.113
Mounting NFS Share
1
root@kakarot$ mkdir NFS-Share #Create a new empty folder to which the NFS share will be mounted.
1
root@kakarot$ sudo mount -t nfs <target-ip>:/ ./NFS-Share/ -o nolock #Mount it on our local machine.
-t: Limit the set of filesystem types
-o: Nfsoptions
nolock: Disables file locking. This setting is occasionally required when connecting to older NFS servers.
1
2
3
4
5
root@kakarot$ cd NFS-Share/
root@kakarot$ ls
drwxr-xr-x 6 kakarot kakarot 4096 Sep 18 22:56 home
drwxr-xr-x 3 root root 4096 Sep 18 12:58 mnt
Unmounting
1
2
root@kakarot$ cd ..
root@kakarot$ sudo umount ./NFS-Share
DNS
The Domain Name System (DNS) is the phonebook of the Internet. Humans access information online through domain names, like kakarot.info. Web browsers interact through Internet Protocol (IP) addresses. DNS translates domain names to IP addresses so browsers can load Internet resources.
How DNS Works ?
Learn more about DNS and DNS Record !
Example:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
root@kakarot$ dig SOA www.kakarot.info
; <<>> DiG 9.18.33 <<>> SOA www.kakarot.info
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 42791
;; flags: qr rd ra; QUERY: 1, ANSWER: 0, AUTHORITY: 1, ADDITIONAL: 1
;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 65494
;; QUESTION SECTION:
;www.kakarot.info. IN SOA
;; AUTHORITY SECTION:
kakarot.info. 3417 IN SOA dns1.p01.nsone.net. domains+netlify.netlify.com. 1754607324 43200 7200 1209600 3600
;; Query time: 38 msec
;; SERVER: 127.0.0.53#53(127.0.0.53) (UDP)
;; WHEN: Wed Sep 24 13:13:38 EDT 2025
;; MSG SIZE rcvd: 126
The dot (.) is replaced with an at sign (@) in the email field. In this case, the administrator’s address is
domains+netlify@netlify.com.
Install & Configure DNS Server
First we need to install DNS server Bind9, he is very often used on Linux-based distributions:
1
root@kakarot$ sudo apt install bind9
Here is Bind9 Documentation !
Here is the Bind9 config files:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
root@kakarot$ ls -l /etc/bind
total 48
-rw-r--r-- 1 root root 2928 Jan 25 2025 bind.keys
-rw-r--r-- 1 root root 255 Jan 25 2025 db.0
-rw-r--r-- 1 root root 271 Jan 25 2025 db.127
-rw-r--r-- 1 root root 237 Jan 25 2025 db.255
-rw-r--r-- 1 root root 353 Jan 25 2025 db.empty
-rw-r--r-- 1 root root 270 Jan 25 2025 db.local
-rw-r--r-- 1 root bind 458 Jan 25 2025 named.conf
-rw-r--r-- 1 root bind 498 Jan 25 2025 named.conf.default-zones
-rw-r--r-- 1 root bind 165 Jan 25 2025 named.conf.local
-rw-r--r-- 1 root bind 846 Jan 25 2025 named.conf.options
-rw-r----- 1 bind bind 100 Sep 24 14:41 rndc.key
-rw-r--r-- 1 root root 1317 Jan 25 2025 zones.rfc1918
We need to creat two files, the first file using to convert Domain name to IP, and the second file using to convert IP to Domain name:
1
root@kakarot:/etc/bind$ touch db.internal.kakarot.info #direct zone file
1
root@kakarot:/etc/bind$ touch db.10.16.172 #reverse zone file
Here we configure our subdomain in named.conf.local file:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
root@kakarot:/etc/bind$ cat named.conf.local
//
// Do any local configuration here
//
// Consider adding the 1918 zones here, if they are not used in your
// organization
//include "/etc/bind/zones.rfc1918";
zone "internal.kakarot.info" {
type master;
file "/etc/bind/db.internal.kakarot.info";
};
zone "10.16.172.in-addr.arpa" {
type master;
file "/etc/bind/db.10.16.172";
};
Now, let’s configure our files:
1
2
3
4
5
6
7
8
9
10
11
12
13
root@kakarot$ cat /etc/bind/db.internal.kakarot.info
$TTL 604800
@ IN SOA me.internal.kakarot.info. root.internal.kakarot.info. (
2 ; Serial
604800 ; Refresh
86400 ; Retry
2419200 ; Expire
604800 ) ; Negative Cache TTL
;
@ IN NS internal.kakarot.info.
me.internal.kakarot.info. IN A 172.16.10.143
internal.kakarot.info. IN A 172.16.10.143
1
2
3
4
5
6
7
8
9
10
11
12
root@kakarot$ cat /etc/bind/db.10.16.172
$TTL 604800
@ IN SOA me.internal.kakarot.info. root.internal.kakarot.info. (
2 ; Serial
604800 ; Refresh
86400 ; Retry
2419200 ; Expire
604800 ) ; Negative Cache TTL
;
@ IN NS internal.kakarot.info.
143 IN PTR me.internal.kakarot.info
1
2
3
4
5
kakarot@me:~$ cat /etc/resolv.conf
# Generated by NetworkManager
search localdomain
nameserver 172.16.10.143
1
root@kakarot$ sudo systemctl restart bind9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
root@kakarot$ dig @172.16.10.143 internal.kakarot.info
; <<>> DiG 9.18.33-1~deb12u2-Debian <<>> @172.16.10.143 internal.kakarot.info
; (1 server found)
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 35850
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1
;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1232
; COOKIE: 0f3c7c4fc379fd740100000068d5c3f900c1196833f1e5e5 (good)
;; QUESTION SECTION:
;internal.kakarot.info. IN A
;; ANSWER SECTION:
internal.kakarot.info. 604800 IN A 172.16.10.143
;; Query time: 4 msec
;; SERVER: 172.16.10.143#53(172.16.10.143) (UDP)
;; WHEN: Thu Sep 25 18:36:41 EDT 2025
;; MSG SIZE rcvd: 94
Sorry guys I can't explain step by step just by writing, it's tiring :(
Dangerous Settings
Here is some vulnerabilities targeting the BIND9 server:
- CVEdetails
- List of the most popular attacks on DNS servers.
Some of this settings shown below can cause these vulnerabilities and others:
| Option | Description |
|---|---|
| allow-query | Defines which hosts are allowed to send requests to the DNS server. |
| allow-recursion | Defines which hosts are allowed to send recursive requests to the DNS server. |
| allow-transfer | Defines which hosts are allowed to receive zone transfers from the DNS server. |
| zone-statistics | Collects statistical data of zones. |
Footprinting the Service
The footprinting at DNS servers is done as a result of the requests we send. So, first of all, the DNS server can be queried as to which other name servers are known. We do this using the NS record and the specification of the DNS server we want to query using the @ character. This is because if there are other DNS servers, we can also use them and query the records. However, other DNS servers may be configured differently and, in addition, may be permanent for other zones.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
root@kakarot$ dig ns kakarot.info @192.0.2.5 #DIG - NS Query
; <<>> DiG 9.18.33 <<>> ns kakarot.info @192.0.2.5
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 42791
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1
;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 65494
;; QUESTION SECTION:
;kakarot.info. IN NS
;; ANSWER SECTION:
kakarot.info. 604800 IN NS ns.kakarot.info.
;; ADDITIONAL SECTION:
ns.kakarot.info. 604800 IN A 192.0.2.5
;; Query time: 2 msec
;; SERVER: 192.0.2.5#53(192.0.2.5)
;; WHEN: Wed Sep 24 13:13:38 EDT 2025
;; MSG SIZE rcvd: 107
Sometimes a DNS server publishes its software version. You can ask for it by sending a special DNS query that uses the CHAOS class and the TXT type. Not all servers provide this information, the server must have that entry configured.
1
root@kakarot$ dig CH TXT version.bind kakarot.info #DIG - Version Query
1
root@kakarot$ dig any kakarot.info @192.0.2.5 #view all available records
Zone transfer AXFR is when DNS data zone files is copied from a master primary server to slave secondary servers over TCP port 53. This keeps all servers the same, so DNS does not fail. The SOA record and its serial number are used to check updates. The rndc-key makes sure only trusted servers do the transfer.
1
root@kakarot$ dig axfr kakarot.info @192.0.2.5
1
root@kakarot$ dig axfr internal.kakarot.info @192.0.2.5
Subdomain Brute Forcing
1
root@kakarot$ for sub in $(cat /opt/useful/seclists/Discovery/DNS/subdomains-top1million-110000.txt);do dig $sub.kakarot.info @192.0.2.5 | grep -v ';\|SOA' | sed -r '/^\s*$/d' | grep $sub | tee -a subdomains.txt;done
1
root@kakarot$ dnsenum --dnsserver 192.0.2.5 --enum -p 0 -s 0 -o subdomains.txt -f /opt/useful/seclists/Discovery/DNS/subdomains-top1million-110000.txt kakarot.info
SMTP
The Simple Mail Transfer Protocol SMTP is a technical standard for transmitting electronic mail email over a network. Like other networking protocols, SMTP allows computers and servers to exchange data regardless of their underlying hardware or software. Just as the use of a standardized form of addressing an envelope allows the postal service to operate, SMTP standardizes the way email travels from sender to recipient, making widespread email delivery possible.
SMTP is a mail delivery protocol, not a mail retrieval protocol. A postal service delivers mail to a mailbox, but the recipient still has to retrieve the mail from the mailbox. Similarly, SMTP delivers an email to an email provider’s mail server, but separate protocols are used to retrieve that email from the mail server so the recipient can read it.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Client (MUA)
│
│ 1) Submit (SMTP AUTH: username/password, usually TCP/587 or 25/465)
▼
Submission Agent (MSA) — (validity check / relay permission)
│
│ 2) Accepts submission, may add/validate headers, then hands to MTA
▼
Open Relay (MTA) — (Mail Transfer Agent: routing, DNS lookup, spam/size checks)
│
│ 3) Looks up recipient MX via DNS → routes through network / other MTAs
▼
Mail Delivery Agent (MDA) — (reassembles packets, final delivery logic)
│
│ 4) Places message into recipient's mailbox storage
▼
Mailbox (POP3 / IMAP) — (recipient reads using POP3 or IMAP)
SMTP by itself has some issues. It doesn’t really give you a clear delivery confirmation, and it also doesn’t check who the sender really is. That’s why in the past spammers could use fake addresses mail spoofing or open relays to send a ton of junk mail. To deal with that, email servers now use things like DomainKeys (DKIM) and Sender Policy Framework (SPF) to spot fake emails. These days, people actually use the extended version, ESMTP. With it, the client starts with EHLO, then does STARTTLS to turn on encryption, and only after that it can log in safely using AUTH PLAIN.
Install & Configure SMTP Server
Installing postfix service:
1
root@kakarot$ apt install postfix
During the installation process you will be asked to choose the setup type, choose:
Internet Site!
When you get “email name”, enter a domain of your choice.
For my setup, I chose kakarot.local as the domain.
I create a new user for this process:
1
2
3
4
5
root@kakarot$ useradd -m neo
root@kakarot$ passwd neo
New password: [neo@3301]
Retype new password: [neo@3301]
passwd: password updated successfully
Our creds are neo:neo@3301.
Now, let’s configure our postfix settings.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
root@kakarot$ cat /etc/postfix/main.cf
<SNIP>
myhostname = mail.kakarot.local
alias_maps = hash:/etc/aliases
alias_database = hash:/etc/aliases
myorigin = /etc/mailname
mydestination = $myhostname, kakarot.local, localhost.localdomain, localhost
relayhost =
mynetworks = 127.0.0.0/8 [::ffff:127.0.0.0]/104 [::1]/128
mailbox_size_limit = 0
recipient_delimiter = +
inet_interfaces = all
inet_protocols = all
home_mailbox = Maildir/
Plz, don’t forget to add this line (
home_mailbox = Maildir/) in your configuration file.
1
root@kakarot$ systemctl restart postfix #restarting the service
To store messages in Maildir format, we install Dovecot
POP3/IMAPserver.
1
root@kakarot$ apt install dovecot-imapd dovecot-pop3d
Create a Maildir folder for user neo:
1
2
3
root@kakarot$ maildirmake.dovecot /home/neo/Maildir
root@kakarot$ chown -R neo:neo /home/neo/Maildir
To send messages, we install
mailutils.
1
root@kakarot$ apt install mailutils
Sending a test mail:
1
root@kakarot$ echo "Follow the white rabbit" | mail -s "Wake up" -r morpheus@kakarot.local neo
Chcking…
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
root@neo$ pwd
/home/neo/Maildir
root@neo$ ls
cur new tmp
root@neo$ cd new
root@neo$ ls
1759062852.V801I2273bM824197.me
root@neo$ cat 1759062852.V801I2273bM824197.me
Return-Path: <morpheus@kakarot.local>
X-Original-To: neo
Delivered-To: neo@kakarot.local
Received: by mail.kakarot.local (Postfix, from userid 0)
id BFCE4FFC28; Sun, 28 Sep 2025 08:34:12 -0400 (EDT)
Subject: Wake up
To: neo@kakarot.local
User-Agent: mail (GNU Mailutils 3.15)
Date: Sun, 28 Sep 2025 08:34:12 -0400
Message-Id: <20250928123412.BFCE4FFC28@mail.kakarot.local>
From: root <morpheus@kakarot.local>
Follow the white rabbit
So, the message has been sent and received successfully !
Sending & Checking manually…
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
root@kakarot$ telnet localhost 25
Trying ::1...
Connected to localhost.
Escape character is '^]'.
220 mail.kakarot.local ESMTP Postfix (Debian/GNU)
EHLO kakarot.local
250-mail.kakarot.local
250-PIPELINING
250-SIZE 10240000
250-VRFY
250-ETRN
250-STARTTLS
250-ENHANCEDSTATUSCODES
250-8BITMIME
250-DSN
250-SMTPUTF8
250 CHUNKING
MAIL FROM:<morpheus@kakarot.local>
250 2.1.0 Ok
RCPT TO:<neo@kakarot.local>
250 2.1.5 Ok
DATA
354 End data with <CR><LF>.<CR><LF>
The matrix has you.
.
250 2.0.0 Ok: queued as DA4D9FF932
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
root@neo$ ls
1759062852.V801I2273bM824197.me 1759063491.V801I22ba8M439440.me
root@neo$ cat 1759063491.V801I22ba8M439440.me
Return-Path: <morpheus@kakarot.local>
X-Original-To: neo@kakarot.local
Delivered-To: neo@kakarot.local
Received: from kakarot.local (localhost [IPv6:::1])
by mail.kakarot.local (Postfix) with ESMTP id DA4D9FF932
for <neo@kakarot.local>; Sun, 28 Sep 2025 08:40:39 -0400 (EDT)
Message-Id: <20250928124120.DA4D9FF932@mail.kakarot.local>
Date: Sun, 28 Sep 2025 08:40:39 -0400 (EDT)
From: morpheus@kakarot.local
The matrix has you.
The message has been sent and received successfully once again !
| Command | Description |
|---|---|
| AUTH PLAIN | Used for client authentication, transmits credentials in Base64-encoded form. |
| HELO | Identifies the client to the server using the client’s hostname, initiating the SMTP session. |
| MAIL FROM | Specifies the return email address of the sender (envelope sender). |
| RCPT TO | Specifies the recipient’s email address (envelope recipient). |
| DATA | Signals the start of the email content, message body is transmitted until terminated with <CRLF>.<CRLF>. |
| RSET | Aborts the current mail transaction, resetting the session state while keeping the connection open. |
| VRFY | Requests verification of whether a specified mailbox exists on the server. |
| EXPN | Expands a mailing list to show its individual recipients. |
| NOOP | Issues a no-operation command, server responds with an acknowledgment to keep the connection active. |
| QUIT | Terminates the SMTP session and closes the connection gracefully. |
Use telnet to connect to the SMTP server and start the session with HELO/EHLO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
root@kakarot$ telnet neo.kakarot.local 25 #telnet - HELO/EHLO
Trying 172.16.10.143...
Connected to neo.kakarot.local.
Escape character is '^]'.
220 mail.kakarot.local ESMTP Postfix (Debian/GNU)
HELO mail.kakarot.local
250 mail.kakarot.local
EHLO mail
250-mail.kakarot.local
250-PIPELINING
250-SIZE 10240000
250-VRFY
250-ETRN
250-STARTTLS
250-ENHANCEDSTATUSCODES
250-8BITMIME
250-DSN
250-SMTPUTF8
250 CHUNKING
The VRFY command can be used to ask the mail server if a certain user exists. In practice, though, it doesn’t always work as expected. Some servers are set up to reply with code 252, which can make it look like a user exists even when they don’t. If you want to see all possible replies, you can look at the full list of SMTP response codes.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
telnet neo.kakarot.local 25 #telnet - VRFY
Trying 172.16.10.143...
Connected to neo.kakarot.local.
Escape character is '^]'.
220 mail.kakarot.local ESMTP Postfix (Debian/GNU)
VRFY root
252 2.0.0 root
VRFY neo
252 2.0.0 neo
VRFY peter
550 5.1.1 <peter>: Recipient address rejected: User unknown in local recipient table
VRFY kakarot
252 2.0.0 kakarot
VRFY roben
550 5.1.1 <roben>: Recipient address rejected: User unknown in local recipient table
We can brute force the users with nmap
Open Relay
An SMTP server that works as an open relay, is a email server that does not verify if the user is authorised to send email from the specified email address. Therefore, users would be able to send email originating from any third-party email address that they want (spoofing).
Open-Relay Checking…
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
root@kakarot$ sudo nmap <IP> -p25 --script smtp-open-relay -v
<SNIP>
PORT STATE SERVICE
25/tcp open smtp
| smtp-open-relay: Server is an open relay (16/16 tests)
| MAIL FROM:<> -> RCPT TO:<relaytest@nmap.scanme.org>
| MAIL FROM:<antispam@nmap.scanme.org> -> RCPT TO:<relaytest@nmap.scanme.org>
| MAIL FROM:<antispam@mail.kakarot.local> -> RCPT TO:<relaytest@nmap.scanme.org>
| MAIL FROM:<antispam@[127.0.0.1]> -> RCPT TO:<relaytest@nmap.scanme.org>
| MAIL FROM:<antispam@[127.0.0.1]> -> RCPT TO:<relaytest%nmap.scanme.org@[127.0.0.1]>
| MAIL FROM:<antispam@[127.0.0.1]> -> RCPT TO:<relaytest%nmap.scanme.org@mail.kakarot.local>
| MAIL FROM:<antispam@[127.0.0.1]> -> RCPT TO:<"relaytest@nmap.scanme.org">
| MAIL FROM:<antispam@[127.0.0.1]> -> RCPT TO:<"relaytest%nmap.scanme.org">
| MAIL FROM:<antispam@[127.0.0.1]> -> RCPT TO:<relaytest@nmap.scanme.org@[127.0.0.1]>
| MAIL FROM:<antispam@[127.0.0.1]> -> RCPT TO:<"relaytest@nmap.scanme.org"@[127.0.0.1]>
| MAIL FROM:<antispam@[127.0.0.1]> -> RCPT TO:<relaytest@nmap.scanme.org@mail.kakarot.local>
| MAIL FROM:<antispam@[127.0.0.1]> -> RCPT TO:<@[127.0.0.1]:relaytest@nmap.scanme.org>
| MAIL FROM:<antispam@[127.0.0.1]> -> RCPT TO:<@mail.kakarot.local:relaytest@nmap.scanme.org>
| MAIL FROM:<antispam@[127.0.0.1]> -> RCPT TO:<nmap.scanme.org!relaytest>
| MAIL FROM:<antispam@[127.0.0.1]> -> RCPT TO:<nmap.scanme.org!relaytest@[127.0.0.1]>
|_ MAIL FROM:<antispam@[127.0.0.1]> -> RCPT TO:<nmap.scanme.org!relaytest@mail.kakarot.local>
NSE: Script Post-scanning.
Initiating NSE at 12:02
Completed NSE at 12:02, 0.00s elapsed
Read data files from: /usr/bin/../share/nmap
Nmap done: 1 IP address (1 host up) scanned in 0.66 seconds
Raw packets sent: 1 (44B) | Rcvd: 2 (88B)
Always complement
automatedNmap scans with manualSMTPtesting viatelnetorncto reliablyverifywhether a server is truly anopen relay.
User enumeration
We can enum SMTP users with different methods:
For example nmap script smtp-enum-users.
1
root@kakarot$ nmap 10.129.23.178 -p 21 --script smtp-enum-users --script-args userdb=/home/kakarot/Desktop/[ListPathHere]
Or this metasploit framework auxiliary:
auxiliary/scanner/smtp/smtp_enum
Also, we can find some script on github, but for I prefer nmap.
POP3 / IMAP
POP3
The POP3 abbreviation stands for Post Office Protocol version 3, which provides access to an inbox stored in an email server. It executes the download and deletes operations for messages. Thus, when a POP3 client connects to the mail server, it retrieves all messages from the mailbox. Then it stores them on your local computer and deletes them from the remote server.
Thanks to this protocol, you are able to access the messages locally in offline mode as well.
Modern POP3 clients allow you to keep a copy of your messages on the server if you explicitly select this option.
┌──────────────────────────┐ ┌──────────────────────────┐
│ CLIENT │ │ SERVER │
│ Local Computer / App │ │ Mail Server (POP3) │
│ (Outlook, Thunderbird..) │ │ Stores Incoming Emails │
└─────────────┬────────────┘ └─────────────┬────────────┘
│ │
│ (1) Establish Connection (Port 110 / 995) │
├────────────────────────────────────────────────▶│
│ │
│ (2) Authenticate (Username & Password) │
├────────────────────────────────────────────────▶│
│ │
│ (3) Download All Emails │
|◀────────────────────────────────────────────────┤
│ │
│ (4) Delete Emails from Server (Default Behavior) │
├────────────────────────────────────────────────▶│
│ │
┌─────────────▼────────────┐ ┌─────────────▼────────────┐
│ LOCAL STORAGE (Inbox) │ │ SERVER MAILBOX │
│ Emails saved on device │ │ Becomes empty after POP3 │
│ (No synchronization) │ │ access │
└──────────────────────────┘ └──────────────────────────┘
| Command | Description |
|---|---|
USER username |
Identifies the user who wants to access the mailbox. |
PASS password |
Authenticates the user by verifying the provided password. |
STAT |
Requests the server to return the total number of messages and the total size of the mailbox. |
LIST |
Retrieves a list of all messages with their sizes from the server. |
RETR id |
Requests the server to deliver the full content of the message identified by id. |
DELE id |
Marks the message with the specified id for deletion from the server. |
CAPA |
Requests the server to return a list of its supported capabilities (extensions). |
RSET |
Resets any messages marked for deletion in the current session and restores their status. |
QUIT |
Ends the session and closes the connection with the POP3 server, applying any deletions. |
IMAP
The Internet Message Access Protocol (IMAP) allows you to access and manage your email messages on the email server. This protocol permits you to manipulate folders, permanently delete and efficiently search through messages. It also gives you the option to set or remove email flags, or fetch email attributes selectively. By default, all messages remain on the server until the user specifically deletes them.
IMAP supports the connection of multiple users to a single mail server.
┌──────────────────────────┐ ┌──────────────────────────┐
│ CLIENT │ │ SERVER │
│ Local Computer / App │ │ Mail Server (IMAP) │
│ (Outlook, Thunderbird..) │ │ Stores Incoming Emails │
└─────────────┬────────────┘ └─────────────┬────────────┘
│ │
│ (1) Establish Connection (Port 143 / 993) │
├────────────────────────────────────────────────▶│
│ │
│ (2) Authenticate (Username & Password) │
├────────────────────────────────────────────────▶│
│ │
│ (3) Synchronize Folder Structure & Headers │
|◀────────────────────────────────────────────────┤
│ │
│ (4) Fetch Email Content on Demand │
|◀────────────────────────────────────────────────┤
│ │
│ (5) Mark, Move, or Delete Emails (Synced) │
├────────────────────────────────────────────────▶│
│ │
┌─────────────▼────────────┐ ┌─────────────▼────────────┐
│ LOCAL STORAGE (Cache) │ │ SERVER MAILBOX │
│ Partial/Full Messages │ │ Remains the master copy │
│ (Synchronized with IMAP) │ │ All changes reflected │
└──────────────────────────┘ └──────────────────────────┘
| Command | Description |
|---|---|
LOGIN username password |
Authenticates the user by verifying the provided username and password. |
LIST "" * |
Retrieves a list of all mailboxes (folders) available to the user. |
CREATE "INBOX" |
Creates a new mailbox with the specified name. |
DELETE "INBOX" |
Deletes the specified mailbox from the server. |
RENAME "Old" "New" |
Renames an existing mailbox from the old name to a new name. |
LSUB "" * |
Returns a list of mailboxes to which the user is currently subscribed (active subscriptions). |
SELECT INBOX |
Selects a mailbox so that its messages can be accessed, searched, or modified. |
UNSELECT INBOX |
Deselects the currently selected mailbox without closing the connection. |
FETCH <ID> all |
Retrieves all data (headers, flags, body, etc.) associated with a specific message identified by <ID>. |
CLOSE |
Closes the currently selected mailbox and permanently removes any messages flagged as Deleted. |
LOGOUT |
Terminates the session and closes the connection with the IMAP server. |
Dangerous Settings
| Setting | Description |
|---|---|
auth_debug |
Enables detailed debug output for the authentication subsystem, showing internal authentication steps and state. Does not necessarily log plaintext passwords. |
auth_debug_passwords |
Logs submitted passwords and the authentication scheme to the server logs. Intended only for short-term debugging, it exposes credentials in logs. |
auth_verbose |
Records failed authentication attempts along with contextual details (reason, client IP, timestamps). Useful for auditing but reveals failure causes. |
auth_verbose_passwords |
Includes attempted passwords in verbose authentication logs (often truncated). This greatly increases the risk of credential leakage and must not be enabled in production. |
auth_anonymous_username |
Specifies the username string assigned to sessions authenticated via the ANONYMOUS SASL mechanism, controls which identity the system records for anonymous logins. |
When settings like
auth_debug,auth_debug_passwords,auth_verbose,auth_verbose_passwordsare enabled, the logs become rich with sensitive information.
Footprinting the Service
Ports Scanning…
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
root@kakarot$ sudo nmap 172.16.10.143 -sV -p110,143,993,995 -sC
Starting Nmap 7.92 ( https://nmap.org ) at 2025-09-29 14:49 EDT
Nmap scan report for neo.kakarot.local (172.16.10.143)
Host is up (0.00033s latency).
PORT STATE SERVICE VERSION
110/tcp open pop3 Dovecot pop3d
|_pop3-capabilities: STLS SASL RESP-CODES UIDL CAPA PIPELINING TOP AUTH-RESP-CODE
|_ssl-date: TLS randomness does not represent time
| ssl-cert: Subject: commonName=me
| Subject Alternative Name: DNS:me
| Not valid before: 2025-09-09T11:38:22
|_Not valid after: 2035-09-07T11:38:22
143/tcp open imap Dovecot imapd
|_imap-capabilities: more SASL-IR LOGIN-REFERRALS OK IMAP4rev1 ENABLE STARTTLS LOGINDISABLEDA0001 have post-login listed capabilities ID IDLE Pre-login LITERAL+
| ssl-cert: Subject: commonName=me
| Subject Alternative Name: DNS:me
| Not valid before: 2025-09-09T11:38:22
|_Not valid after: 2035-09-07T11:38:22
|_ssl-date: TLS randomness does not represent time
993/tcp open ssl/imap Dovecot imapd
|_imap-capabilities: AUTH=PLAINA0001 SASL-IR IDLE OK IMAP4rev1 ENABLE post-login more have listed capabilities ID LOGIN-REFERRALS Pre-login LITERAL+
| ssl-cert: Subject: commonName=me
| Subject Alternative Name: DNS:me
| Not valid before: 2025-09-09T11:38:22
|_Not valid after: 2035-09-07T11:38:22
|_ssl-date: TLS randomness does not represent time
995/tcp open ssl/pop3 Dovecot pop3d
|_pop3-capabilities: USER SASL(PLAIN) RESP-CODES UIDL CAPA PIPELINING TOP AUTH-RESP-CODE
| ssl-cert: Subject: commonName=me
| Subject Alternative Name: DNS:me
| Not valid before: 2025-09-09T11:38:22
|_Not valid after: 2035-09-07T11:38:22
|_ssl-date: TLS randomness does not represent time
MAC Address: 00:0C:29:FD:CC:20 (VMware)
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 14.77 seconds
Interact with a POP3/IMAP server using cURL…
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
root@kakarot$ curl -k 'pop3s://172.16.10.143' --user neo:neo@3301
1 434
2 434
3 434
root@kakarot$ curl -k 'pop3s://172.16.10.143/2' --user neo:neo@3301
Return-Path: <morpheus@kakarot.local>
X-Original-To: neo@kakarot.local
Delivered-To: neo@kakarot.local
Received: by mail.kakarot.local (Postfix, from userid 0)
id 15C82FFC27; Sat, 27 Sep 2025 20:01:39 -0400 (EDT)
Subject: Wake up
To: <neo@kakarot.local>
User-Agent: mail (GNU Mailutils 3.15)
Date: Sat, 27 Sep 2025 20:01:39 -0400
Message-Id: <20250928000139.15C82FFC27@mail.kakarot.local>
From: root <morpheus@kakarot.local>
1
2
3
4
root@kakarot$ curl -k 'imaps://172.16.10.143' --user neo:neo@3301
* LIST (\HasNoChildren) "." Important
* LIST (\HasNoChildren) "/" INBOX
If we also use the verbose
-voption, we will see how the connection is made, TLS used for encryption and more information.
Interact with a POP3/IMAP server using openssl…
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
root@kakarot$ openssl s_client -connect 172.16.10.143:995 -crlf -ign_eof
Connecting to 172.16.10.143
CONNECTED(00000003)
Can't use SSL_get_servername
depth=0 CN=me
verify error:num=18:self-signed certificate
verify return:1
depth=0 CN=me
verify return:1
---
Certificate chain
0 s:CN=me
i:CN=me
a:PKEY: rsaEncryption, 2048 (bit); sigalg: RSA-SHA256
v:NotBefore: Sep 9 11:38:22 2025 GMT; NotAfter: Sep 7 11:38:22 2035 GMT
---
No client certificate CA names sent
Peer signing digest: SHA256
Peer signature type: RSA-PSS
Server Temp Key: X25519, 253 bits
---
SSL handshake has read 1299 bytes and written 382 bytes
Verification error: self-signed certificate
---
New, TLSv1.3, Cipher is TLS_AES_256_GCM_SHA384
Server public key is 2048 bit
This TLS version forbids renegotiation.
Compression: NONE
Expansion: NONE
No ALPN negotiated
Early data was not sent
Verify return code: 18 (self-signed certificate)
---
---
Post-Handshake New Session Ticket arrived:
SSL-Session:
Protocol : TLSv1.3
Cipher : TLS_AES_256_GCM_SHA384
Session-ID: 1861D610F7A4788234104CBAF853454E7EA59534ED7F26BFA3C10DF8A7F9DB1E
Session-ID-ctx:
Resumption PSK: 733437D2D93B482217D08E457D0031E43F7CF2398D9951A68250EE3F36AB956ECBD1CD88B14C187F5CFFB0BCCDFFA929
PSK identity: None
PSK identity hint: None
SRP username: None
TLS session ticket lifetime hint: 7200 (seconds)
TLS session ticket:
0000 - 9e d5 fa fd b9 dd 0f 4f-2b 32 af 68 8e 0a f9 50 .......O+2.h...P
0010 - 12 6d 58 73 f4 e3 30 e1-c3 d3 ca 93 01 7f 8c 4d .mXs..0........M
0020 - 72 ce d4 cf f2 1f d9 a2-7e 7e 43 7b 5a 04 de c3 r.......~~C{Z...
0030 - bc 83 85 c0 72 b0 99 22-2f ac e8 f8 8b e7 e5 66 ....r.."/......f
0040 - bb 13 3c e4 ad 0d c8 61-c8 5f 2e 40 97 6d 80 26 ..<....a._.@.m.&
0050 - 63 3c 68 13 fa 46 70 75-5e cb 83 a5 f5 fc 03 eb c<h..Fpu^.......
0060 - 75 95 ba a5 f9 b0 93 81-02 b6 d7 15 78 24 79 12 u...........x$y.
0070 - de d4 46 6a 30 bc 2d 9d-e5 2c a1 f4 9b 02 81 39 ..Fj0.-..,.....9
0080 - b1 9e 7e a7 9a 04 ed d2-3c 63 4b b5 fc a3 dd c4 ..~.....<cK.....
0090 - 3b e4 b0 ac 0d b5 81 f7-bb 36 61 aa c7 e6 e4 b7 ;........6a.....
00a0 - 4a 2f 74 22 6c e3 59 53-e0 9a 90 19 54 45 37 b7 J/t"l.YS....TE7.
00b0 - 6e 52 25 41 10 fa b8 e8-60 e9 3e 8f 8d 63 b2 87 nR%A....`.>..c..
00c0 - a9 e5 bf 8b 5c 23 88 e9-b8 1c 8f de 19 2e 20 42 ....\#........ B
Start Time: 1759182685
Timeout : 7200 (sec)
Verify return code: 18 (self-signed certificate)
Extended master secret: no
Max Early Data: 0
---
read R BLOCK
---
Post-Handshake New Session Ticket arrived:
SSL-Session:
Protocol : TLSv1.3
Cipher : TLS_AES_256_GCM_SHA384
Session-ID: 1A71DC277EAF4B57AF2431CEDDB2D660C7DD397F9394EF228CFC958EE8CB9C60
Session-ID-ctx:
Resumption PSK: 98BA9B54E0C3EAE554EBAD254860F98FBD7263D5B0B936B1DCE34739AA7DF67A725C18EC69D7E037F6AE32B5823FD7F0
PSK identity: None
PSK identity hint: None
SRP username: None
TLS session ticket lifetime hint: 7200 (seconds)
TLS session ticket:
0000 - 9e d5 fa fd b9 dd 0f 4f-2b 32 af 68 8e 0a f9 50 .......O+2.h...P
0010 - a8 3c 3b 74 22 ab 1c 0e-05 71 38 15 a8 34 b1 57 .<;t"....q8..4.W
0020 - 24 e4 a2 73 d4 31 2b 77-a1 41 31 2d b7 fe b4 50 $..s.1+w.A1-...P
0030 - a0 c1 b3 a0 96 bf 40 05-db 42 b4 fb 22 4a 89 4e ......@..B.."J.N
0040 - 18 82 9f 87 c5 b2 8a fa-4f 85 f9 74 76 32 7d 10 ........O..tv2}.
0050 - e2 47 4e bf c1 84 91 48-c5 e0 03 cb f4 46 9c a6 .GN....H.....F..
0060 - c3 40 d2 ef 8a 31 cc ca-65 e3 12 99 4d a5 f2 1c .@...1..e...M...
0070 - 50 97 fc 86 b7 fe 3d 01-c3 04 c9 c2 0a 8a a7 6e P.....=........n
0080 - 7e 7f e3 ff 8d 83 65 0a-28 2f bc 26 ca c7 f3 77 ~.....e.(/.&...w
0090 - 69 23 dd e3 a1 e1 c4 22-88 d4 31 a2 5f db c7 29 i#....."..1._..)
00a0 - d7 1b ce 56 c7 91 c4 cd-25 7e 73 84 81 dd 04 59 ...V....%~s....Y
00b0 - 64 8f d9 56 1e 6a a0 a7-f5 33 2b 21 3c 7e f3 2e d..V.j...3+!<~..
00c0 - 89 85 4f 0f 06 ba 22 e0-94 c6 01 95 7d 0b 94 ac ..O...".....}...
Start Time: 1759182685
Timeout : 7200 (sec)
Verify return code: 18 (self-signed certificate)
Extended master secret: no
Max Early Data: 0
---
read R BLOCK
+OK Dovecot (Debian) ready.
USER neo
+OK
PASS neo@3301
+OK Logged in.
LIST
+OK 3 messages:
1 434
2 434
3 434
.
RETR 1
+OK 434 octets
Return-Path: <root@me>
X-Original-To: neo@kakarot.local
Delivered-To: neo@kakarot.local
Received: by mail.kakarot.local (Postfix, from userid 0)
id A6C28FFB51; Sat, 27 Sep 2025 19:58:31 -0400 (EDT)
Subject: Wake up
To: <neo@kakarot.local>
User-Agent: mail (GNU Mailutils 3.15)
Date: Sat, 27 Sep 2025 19:58:31 -0400
Message-Id: <20250927235831.A6C28FFB51@mail.kakarot.local>
From: root <root@me>
Follow the white rabbit
.
QUIT
+OK Logging out.
closed
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
root@kakarot$ openssl s_client -connect 172.16.10.143:993 -crlf -ign_eof
Connecting to 172.16.10.143
CONNECTED(00000003)
Can't use SSL_get_servername
depth=0 CN=me
verify error:num=18:self-signed certificate
verify return:1
depth=0 CN=me
verify return:1
---
Certificate chain
0 s:CN=me
i:CN=me
a:PKEY: rsaEncryption, 2048 (bit); sigalg: RSA-SHA256
v:NotBefore: Sep 9 11:38:22 2025 GMT; NotAfter: Sep 7 11:38:22 2035 GMT
---
No client certificate CA names sent
Peer signing digest: SHA256
Peer signature type: RSA-PSS
Server Temp Key: X25519, 253 bits
---
SSL handshake has read 1299 bytes and written 382 bytes
Verification error: self-signed certificate
---
New, TLSv1.3, Cipher is TLS_AES_256_GCM_SHA384
Server public key is 2048 bit
This TLS version forbids renegotiation.
Compression: NONE
Expansion: NONE
No ALPN negotiated
Early data was not sent
Verify return code: 18 (self-signed certificate)
---
---
Post-Handshake New Session Ticket arrived:
SSL-Session:
Protocol : TLSv1.3
Cipher : TLS_AES_256_GCM_SHA384
Session-ID: 3423CA2AF24E6CECC33DB73779C66B6C769BC6099483423BE1663418AE946D10
Session-ID-ctx:
Resumption PSK: 99BF7E88545985435B8DCF3538365BCAB8680B68E0835F6F2D5DED19CBEA995D245FD90820F710AEF5D57FF91F66D662
PSK identity: None
PSK identity hint: None
SRP username: None
TLS session ticket lifetime hint: 7200 (seconds)
TLS session ticket:
0000 - 67 a1 92 cf be d6 89 f6-01 23 d2 82 05 f1 80 cf g........#......
0010 - a6 52 f8 60 e8 75 f1 53-1f 83 60 a0 8b 88 55 59 .R.`.u.S..`...UY
0020 - d1 06 19 8b 22 ef 10 07-ce b7 16 a4 e5 37 47 11 ...."........7G.
0030 - 9d fc 4c 9d 61 b8 ff 08-2c 53 da 30 20 a5 6d b1 ..L.a...,S.0 .m.
0040 - ba 78 69 3f cb 54 a7 8a-72 df 5c 89 fe d0 27 fb .xi?.T..r.\...'.
0050 - af 4b 43 f2 af a8 25 00-1d 19 dd 0e 2a f4 e5 a1 .KC...%.....*...
0060 - d8 eb 47 07 a5 fd 41 ec-e9 ce ed 69 a7 06 a8 a1 ..G...A....i....
0070 - 8b 78 6a d2 bc 9f 41 12-ee d6 5e 60 34 39 c1 15 .xj...A...^`49..
0080 - 3c a2 f0 c7 01 80 f4 76-25 71 6d 31 b7 5e 4e c5 <......v%qm1.^N.
0090 - c0 dc 53 f6 36 c2 4a 67-23 a1 3a c1 e5 8f b4 81 ..S.6.Jg#.:.....
00a0 - 77 30 4c 5f 3a 5f f5 63-59 b6 13 d6 10 5c 8f a6 w0L_:_.cY....\..
00b0 - 37 1d 3c 92 0f 05 ec a3-67 5d 71 34 fb 16 e1 bc 7.<.....g]q4....
00c0 - 2a d8 40 0a 88 c3 57 c1-7f e4 d9 01 b5 c1 50 1a *.@...W.......P.
Start Time: 1759183406
Timeout : 7200 (sec)
Verify return code: 18 (self-signed certificate)
Extended master secret: no
Max Early Data: 0
---
read R BLOCK
---
Post-Handshake New Session Ticket arrived:
SSL-Session:
Protocol : TLSv1.3
Cipher : TLS_AES_256_GCM_SHA384
Session-ID: 9A31FBC68CB8C7F8CC1021CC1624404EC6E50C79C28BFE60BC57651036EE12D7
Session-ID-ctx:
Resumption PSK: 279D7940BD9A740469D2719830C6BD49B221E39CF70824B60D6ABCF1872806562A1A295FB7B5A3075A2806E1E914B3E3
PSK identity: None
PSK identity hint: None
SRP username: None
TLS session ticket lifetime hint: 7200 (seconds)
TLS session ticket:
0000 - 67 a1 92 cf be d6 89 f6-01 23 d2 82 05 f1 80 cf g........#......
0010 - 9d 71 0d ec 81 1b 31 9a-d3 2c 94 4e 47 00 4b 94 .q....1..,.NG.K.
0020 - 48 71 da bb 7b b7 ef 49-a4 26 d4 28 44 e4 a0 f2 Hq..{..I.&.(D...
0030 - 29 83 cd 29 70 78 1b db-85 24 32 7f 34 8a cc f8 )..)px...$2.4...
0040 - 9c 34 8e 31 bf 44 13 dd-8e 28 28 ff 8e 2b 29 dd .4.1.D...((..+).
0050 - 88 35 2c 8e e9 1e 6b 1a-be e0 c1 b2 b1 cc 7a 78 .5,...k.......zx
0060 - 3f 16 1f c1 1b 9e 04 f7-24 03 6d 08 3c 9d 44 3f ?.......$.m.<.D?
0070 - 8d e2 0c dd 2a 85 d0 07-51 c9 e2 bf 76 39 5a c7 ....*...Q...v9Z.
0080 - fb 38 12 96 d3 a0 d2 3d-a9 9b c8 81 24 2c 34 c3 .8.....=....$,4.
0090 - 6f b7 15 cd 3c d6 bf 49-e3 54 7b 68 a4 a8 3a c3 o...<..I.T{h..:.
00a0 - 54 c4 63 6a d6 dd 3a ef-93 47 9e f8 70 a5 46 d5 T.cj..:..G..p.F.
00b0 - 9f e7 ab 76 63 c1 ff bf-e0 e7 cd e1 95 4a 24 4f ...vc........J$O
00c0 - 11 b2 12 7e 21 27 77 fe-2d 79 25 a6 6e d5 cb c2 ...~!'w.-y%.n...
Start Time: 1759183406
Timeout : 7200 (sec)
Verify return code: 18 (self-signed certificate)
Extended master secret: no
Max Early Data: 0
---
read R BLOCK
* OK [CAPABILITY IMAP4rev1 SASL-IR LOGIN-REFERRALS ID ENABLE IDLE LITERAL+ AUTH=PLAIN] Dovecot (Debian) ready.
a001 LOGIN neo neo@3301
a001 OK [CAPABILITY IMAP4rev1 SASL-IR LOGIN-REFERRALS ID ENABLE IDLE SORT SORT=DISPLAY THREAD=REFERENCES THREAD=REFS THREAD=ORDEREDSUBJECT MULTIAPPEND URL-PARTIAL CATENATE UNSELECT CHILDREN NAMESPACE UIDPLUS LIST-EXTENDED I18NLEVEL=1 CONDSTORE QRESYNC ESEARCH ESORT SEARCHRES WITHIN CONTEXT=SEARCH LIST-STATUS BINARY MOVE SNIPPET=FUZZY PREVIEW=FUZZY PREVIEW STATUS=SIZE SAVEDATE LITERAL+ NOTIFY SPECIAL-USE] Logged in
a002 LIST "" *
* LIST (\HasNoChildren) "/" INBOX
a002 OK List completed (0.001 + 0.000 secs).
a003 SELECT INBOX
* FLAGS (\Answered \Flagged \Deleted \Seen \Draft)
* OK [PERMANENTFLAGS (\Answered \Flagged \Deleted \Seen \Draft \*)] Flags permitted.
* 3 EXISTS
* 0 RECENT
* OK [UIDVALIDITY 1759172707] UIDs valid
* OK [UIDNEXT 4] Predicted next UID
a003 OK [READ-WRITE] Select completed (0.002 + 0.000 + 0.001 secs).
a007 FETCH 1:3 (BODY[])
* 1 FETCH (BODY[] {434}
Return-Path: <root@me>
X-Original-To: neo@kakarot.local
Delivered-To: neo@kakarot.local
Received: by mail.kakarot.local (Postfix, from userid 0)
id A6C28FFB51; Sat, 27 Sep 2025 19:58:31 -0400 (EDT)
Subject: Wake up
To: <neo@kakarot.local>
User-Agent: mail (GNU Mailutils 3.15)
Date: Sat, 27 Sep 2025 19:58:31 -0400
Message-Id: <20250927235831.A6C28FFB51@mail.kakarot.local>
From: root <root@me>
Follow the white rabbit
)
* 2 FETCH (BODY[] {434}
Return-Path: <root@me>
X-Original-To: neo@kakarot.local
Delivered-To: neo@kakarot.local
Received: by mail.kakarot.local (Postfix, from userid 0)
id 15C82FFC27; Sat, 27 Sep 2025 20:01:39 -0400 (EDT)
Subject: Wake up
To: <neo@kakarot.local>
User-Agent: mail (GNU Mailutils 3.15)
Date: Sat, 27 Sep 2025 20:01:39 -0400
Message-Id: <20250928000139.15C82FFC27@mail.kakarot.local>
From: root <root@me>
Follow the white rabbit
)
* 3 FETCH (BODY[] {434}
Return-Path: <root@me>
X-Original-To: neo@kakarot.local
Delivered-To: neo@kakarot.local
Received: by mail.kakarot.local (Postfix, from userid 0)
id F3500FFC27; Sat, 27 Sep 2025 20:03:32 -0400 (EDT)
Subject: Wake up
To: <neo@kakarot.local>
User-Agent: mail (GNU Mailutils 3.15)
Date: Sat, 27 Sep 2025 20:03:32 -0400
Message-Id: <20250928000332.F3500FFC27@mail.kakarot.local>
From: root <root@me>
Follow the white rabbit
)
a007 OK Fetch completed (0.003 + 0.000 + 0.002 secs).
SNMP
SNMP, or Simple Network Management Protocol, is a standard method for monitoring and managing various network components, including routers, switches, servers, and IoT devices. It operates on a client-server model using lightweight agents on the devices and a manager that communicates over UDP on port 161. It receives unrequested reports called traps on port 162. Central to SNMP is the concept of a Management Information Base (MIB). This is a textual ‘map’ where all the queryable items and the associated details are arranged, and each item is associated with an Object Identifier Registry (OID). OIDs are a sequence of dotted numbers that indicate an item’s position within a hierarchy and provide increasing specificity. SNMP is available in multiple versions. v1 and v2c are the simplest to implement and most widely distributed, but they offer no real protections as authentication and encryption are bypassed by the use of community strings. Crude community strings can be easily intercepted as they function as weak passwords. v3 systems implement user-based control and authentication which are optional encyption layers. This makes the system more secure.
Default Configuration
1
2
3
4
5
6
7
8
9
10
11
12
root@kakarot$ cat /etc/snmp/snmpd.conf | grep -v "#" | sed -r '/^\s*$/d'
sysLocation Sitting on the Dock of the Bay
sysContact Me <me@example.org>
sysServices 72
master agentx
agentaddress 127.0.0.1,[::1]
view systemonly included .1.3.6.1.2.1.1
view systemonly included .1.3.6.1.2.1.25.1
rocommunity public default -V systemonly
rocommunity6 public default -V systemonly
rouser authPrivUser authpriv -V systemonly
Here is SNMP manpage !
Dangerous Settings
| Settings | Description |
|---|---|
rwuser noauth |
Grants unrestricted read-write access to the entire SNMP OID tree without requiring any authentication. |
rwcommunity <community string> <IPv4 address> |
Grants full read-write access to the entire SNMP OID tree for requests originating from the specified IPv4 address, regardless of the source. |
rwcommunity6 <community string> <IPv6 address> |
Provides the same full read-write access as rwcommunity, specifically for requests originating from the specified IPv6 address. |
Footprinting the Service
Nmap Scanning…
1
root@kakarot$ nmap -sU --script snmp-brute <target-ip> -p 161
SNMPwalk - Used to recursively query OIDs from an SNMP agent and retrieve their values defined in the MIB…
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
root@kakarot$ snmpwalk -v2c -c public 172.16.10.143
iso.3.6.1.2.1.1.1.0 = STRING: "Linux neo 5.11.0-34-generic #36~20.04.1-Ubuntu SMP Fri Aug 27 08:06:32 UTC 2021 x86_64"
iso.3.6.1.2.1.1.2.0 = OID: iso.3.6.1.4.1.8072.3.2.10
iso.3.6.1.2.1.1.3.0 = Timeticks: (5134) 0:00:51.34
iso.3.6.1.2.1.1.4.0 = STRING: "e3tr@kakarot.info"
iso.3.6.1.2.1.1.5.0 = STRING: "neo"
iso.3.6.1.2.1.1.6.0 = STRING: "Sitting on the Dock of the Bay"
iso.3.6.1.2.1.1.7.0 = INTEGER: 72
iso.3.6.1.2.1.1.8.0 = Timeticks: (0) 0:00:00.00
iso.3.6.1.2.1.1.9.1.2.1 = OID: iso.3.6.1.6.3.10.3.1.1
iso.3.6.1.2.1.1.9.1.2.2 = OID: iso.3.6.1.6.3.11.3.1.1
iso.3.6.1.2.1.1.9.1.2.3 = OID: iso.3.6.1.6.3.15.2.1.1
iso.3.6.1.2.1.1.9.1.2.4 = OID: iso.3.6.1.6.3.1
iso.3.6.1.2.1.1.9.1.2.5 = OID: iso.3.6.1.6.3.16.2.2.1
iso.3.6.1.2.1.1.9.1.2.6 = OID: iso.3.6.1.2.1.49
iso.3.6.1.2.1.1.9.1.2.7 = OID: iso.3.6.1.2.1.4
iso.3.6.1.2.1.1.9.1.2.8 = OID: iso.3.6.1.2.1.50
iso.3.6.1.2.1.1.9.1.2.9 = OID: iso.3.6.1.6.3.13.3.1.3
iso.3.6.1.2.1.1.9.1.2.10 = OID: iso.3.6.1.2.1.92
iso.3.6.1.2.1.1.9.1.3.1 = STRING: "The SNMP Management Architecture MIB."
iso.3.6.1.2.1.1.9.1.3.2 = STRING: "The MIB for Message Processing and Dispatching."
iso.3.6.1.2.1.1.9.1.3.3 = STRING: "The management information definitions for the SNMP User-based Security Model."
iso.3.6.1.2.1.1.9.1.3.4 = STRING: "The MIB module for SNMPv2 entities"
iso.3.6.1.2.1.1.9.1.3.5 = STRING: "View-based Access Control Model for SNMP."
iso.3.6.1.2.1.1.9.1.3.6 = STRING: "The MIB module for managing TCP implementations"
iso.3.6.1.2.1.1.9.1.3.7 = STRING: "The MIB module for managing IP and ICMP implementations"
iso.3.6.1.2.1.1.9.1.3.8 = STRING: "The MIB module for managing UDP implementations"
iso.3.6.1.2.1.1.9.1.3.9 = STRING: "The MIB modules for managing SNMP Notification, plus filtering."
iso.3.6.1.2.1.1.9.1.3.10 = STRING: "The MIB module for logging SNMP Notifications."
iso.3.6.1.2.1.1.9.1.4.1 = Timeticks: (0) 0:00:00.00
iso.3.6.1.2.1.1.9.1.4.2 = Timeticks: (0) 0:00:00.00
iso.3.6.1.2.1.1.9.1.4.3 = Timeticks: (0) 0:00:00.00
iso.3.6.1.2.1.1.9.1.4.4 = Timeticks: (0) 0:00:00.00
iso.3.6.1.2.1.1.9.1.4.5 = Timeticks: (0) 0:00:00.00
iso.3.6.1.2.1.1.9.1.4.6 = Timeticks: (0) 0:00:00.00
iso.3.6.1.2.1.1.9.1.4.7 = Timeticks: (0) 0:00:00.00
iso.3.6.1.2.1.1.9.1.4.8 = Timeticks: (0) 0:00:00.00
iso.3.6.1.2.1.1.9.1.4.9 = Timeticks: (0) 0:00:00.00
iso.3.6.1.2.1.1.9.1.4.10 = Timeticks: (0) 0:00:00.00
iso.3.6.1.2.1.25.1.1.0 = Timeticks: (3676678) 10:12:46.78
iso.3.6.1.2.1.25.1.2.0 = Hex-STRING: 07 E5 09 14 0E 2B 2D 00 2B 02 00
iso.3.6.1.2.1.25.1.3.0 = INTEGER: 393216
iso.3.6.1.2.1.25.1.4.0 = STRING: "BOOT_IMAGE=/boot/vmlinuz-5.11.0-34-generic root=UUID=9a6a5c52-f92a-42ea-8ddf-940d7e0f4223 ro quiet splash"
iso.3.6.1.2.1.25.1.5.0 = Gauge32: 3
iso.3.6.1.2.1.25.1.6.0 = Gauge32: 411
iso.3.6.1.2.1.25.1.7.0 = INTEGER: 0
iso.3.6.1.2.1.25.1.7.0 = No more variables left in this MIB View (It is past the end of the MIB tree)
...SNIP...
iso.3.6.1.2.1.25.6.3.1.2.1232 = STRING: "printer-driver-sag-gdi_0.1-7_all"
iso.3.6.1.2.1.25.6.3.1.2.1233 = STRING: "printer-driver-splix_2.0.0+svn315-7fakesync1build1_amd64"
iso.3.6.1.2.1.25.6.3.1.2.1234 = STRING: "procps_2:3.3.16-1ubuntu2.3_amd64"
iso.3.6.1.2.1.25.6.3.1.2.1235 = STRING: "proftpd-basic_1.3.6c-2_amd64"
iso.3.6.1.2.1.25.6.3.1.2.1236 = STRING: "proftpd-doc_1.3.6c-2_all"
iso.3.6.1.2.1.25.6.3.1.2.1237 = STRING: "psmisc_23.3-1_amd64"
iso.3.6.1.2.1.25.6.3.1.2.1238 = STRING: "publicsuffix_20200303.0012-1_all"
iso.3.6.1.2.1.25.6.3.1.2.1239 = STRING: "pulseaudio_1:13.99.1-1ubuntu3.12_amd64"
iso.3.6.1.2.1.25.6.3.1.2.1240 = STRING: "pulseaudio-module-bluetooth_1:13.99.1-1ubuntu3.12_amd64"
iso.3.6.1.2.1.25.6.3.1.2.1241 = STRING: "pulseaudio-utils_1:13.99.1-1ubuntu3.12_amd64"
iso.3.6.1.2.1.25.6.3.1.2.1242 = STRING: "python-apt-common_2.0.0ubuntu0.20.04.6_all"
iso.3.6.1.2.1.25.6.3.1.2.1243 = STRING: "python3_3.8.2-0ubuntu2_amd64"
iso.3.6.1.2.1.25.6.3.1.2.1244 = STRING: "python3-acme_1.1.0-1_all"
iso.3.6.1.2.1.25.6.3.1.2.1245 = STRING: "python3-apport_2.20.11-0ubuntu27.21_all"
iso.3.6.1.2.1.25.6.3.1.2.1246 = STRING: "python3-apt_2.0.0ubuntu0.20.04.6_amd64"
...SNIP...
Onesixtyone - Used to brute-force the names of the community strings since they can be named arbitrarily by the administrator
1
2
3
4
5
root@kakarot$ sudo apt install onesixtyone
root@kakarot$ onesixtyone -c /opt/useful/seclists/Discovery/SNMP/snmp.txt 172.16.10.143
Scanning 1 hosts, 3220 communities
172.16.10.143 [public] Linux mee 5.11.0-37-generic #41~20.04.2-Ubuntu SMP ... x86_64
Community strings are often named after hostnames, sometimes with added symbols. On large networks, patterns may exist, allowing you to guess them. Tools like crunch can help create custom wordlists for smarter SNMP enumeration.
Braa - Used to brute-force the individual OIDs and enumerate the information behind them…
1
2
3
4
5
6
7
8
9
10
11
12
root@kakarot$ sudo apt install braa
root@kakarot$ braa <community string>@<IP>:.1.3.6.* # Syntax
root@kakarot$ braa public@172.16.10.143:.1.3.6.*
172.16.10.143:20ms:.1.3.6.1.2.1.1.1.0:Linux mee 5.11.0-34-generic #36~20.04.1-Ubuntu SMP Fri Aug 27 08:06:32 UTC 2021 x86_64
172.16.10.143:20ms:.1.3.6.1.2.1.1.2.0:.1.3.6.1.4.1.8072.3.2.10
172.16.10.143:20ms:.1.3.6.1.2.1.1.3.0:548
172.16.10.143:20ms:.1.3.6.1.2.1.1.4.0:e3tr@kakarot.info
172.16.10.143:20ms:.1.3.6.1.2.1.1.5.0:mee
172.16.10.143:20ms:.1.3.6.1.2.1.1.6.0:US
172.16.10.143:20ms:.1.3.6.1.2.1.1.7.0:78
...SNIP...
MySQL
MySQL is basically one of the go-to databases when people build dynamic websites. It’s been around for a long time, and even though Oracle owns it now, it’s still open-source, which means you don’t pay for it. That’s one big reason people like it. Another one is that it’s fast, and it doesn’t eat up too much space.
The idea behind it is the client–server setup. The server is where all the data actually lives, in tables with rows and columns. Clients just send SQL commands, like add this, remove that, or give me the info I need. Pretty straightforward once you get the hang of it.
Most of the time, MySQL comes as part of what’s called LAMP or LEMP. That’s Linux, Apache or Nginx, PHP, and MySQL. In that role, it usually stores sensitive stuff, like usernames, passwords, emails, and access levels. That’s why it’s such a big deal for security. Sure, passwords are normally hashed so they’re not just plain text, but things like SQL injection can still break through. And honestly, error messages can sometimes spill details about the database that attackers find useful.
What makes MySQL strong is also what makes it risky. You get a lot of freedom to design tables, set up relationships, add indexes, and manage users. But if the setup is weak or messy, it’s easy to exploit.
And then there’s MariaDB. It’s basically MySQL’s sibling, created after Oracle took over. Same core idea, still open-source, and many people use it because they wanted something not tied to Oracle
Install & Configure MySQL Server
Install MySQL server software on the server machine:
1
root@kakarot$ sudo apt install mysql-server -y
If you see this error
E: Package 'mysql-server' has no installation candidate, plz follow this steps!
1
root@kakarot$ sudo wget https://dev.mysql.com/get/mysql-apt-config_0.8.30-1_all.deb
1
root@kakarot$ sudo dpkg -i mysql-apt-config_0.8.30-1_all.deb
1
root@kakarot$ sudo apt update
1
root@kakarot$ sudo apt install mysql-server -y
We can find the default configs here:
1
root@kakarot$ cat /etc/mysql/mysql.conf.d/mysqld.cnf | grep -v "#" | sed -r '/^\s*$/d'
Create a database, table, and insert data:
1
2
3
4
5
6
7
root@kakarot$ sudo mysql -u root -p
mysql> CREATE DATABASE users;
mysql> USE users;
mysql> CREATE TABLE users (id INT AUTO_INCREMENT PRIMARY KEY, username VARCHAR(50), password VARCHAR(50));
mysql> INSERT INTO users (username, password) VALUES ('admin', 'admin123');
...
Allow the client machine to connect securely:
1
2
3
4
5
6
root@kakarot$ sudo mysql -u root -p
mysql> CREATE USER 'neo'@'172.16.10.1' IDENTIFIED BY 'Neo@3301';
mysql> GRANT ALL PRIVILEGES ON *.* TO 'neo'@'172.16.10.1' WITH GRANT OPTION;
mysql> FLUSH PRIVILEGES;
mysql> EXIT;
Verify that the server is accessible remotely:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
root@neo$ mysql -u neo -h 172.16.10.143 -pNeo@3301
MySQL [(none)]> SHOW DATABASES;
+--------------------+
| Database |
+--------------------+
| information_schema |
| mysql |
| performance_schema |
| sys |
| users |
+--------------------+
MySQL [(none)]> USE users;
MySQL [users]> SHOW TABLES;
+-----------------+
| Tables_in_users |
+-----------------+
| users |
+-----------------+
MySQL [users]> SELECT * FROM users;
+----+----------+----------+
| id | username | password |
+----+----------+----------+
| 1 | admin | admin123 |
| 2 | peter | peter123 |
| 3 | bob | bob@123 |
+----+----------+----------+
Dangerous Settings
| Setting | Academic Description |
|---|---|
| user | Defines the system account under which the MySQL server process (mysqld) runs. Typically set to mysql to ensure process isolation and security. |
| password | Historically used to set a password for the MySQL user at startup, but it is deprecated because it may expose credentials in plain text. It is recommended to use MySQL’s internal account management or secure tools such as mysql_secure_installation instead. |
| admin_address | Specifies the IP address on which the MySQL server listens for administrative TCP/IP connections. Commonly used to separate administrative access from regular user connections for security purposes. |
| debug | Controls debugging options for the server. When enabled, it logs detailed internal execution information, useful for troubleshooting and performance analysis. |
| sql_warnings | Determines whether MySQL generates warning messages for certain operations (e.g., single-row INSERT statements that cause truncation or implicit conversions). Helps identify logical or data consistency issues. |
| secure_file_priv | Restricts the directory path for data import and export operations (LOAD DATA INFILE, SELECT ... INTO OUTFILE). Enhances security by preventing unauthorized file access outside the specified directory. |
See here for more information about settings !
Footprinting the Service
Scanning MySQL Server…
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
root@kakarot$ sudo nmap 172.16.10.143 -sV -sC -p3306 --script mysql\*
Starting Nmap 7.92 ( https://nmap.org ) at 0000-00-00 00:00 EDT
Nmap scan report for neo.kakarot.local (172.16.10.143)
Host is up (0.00026s latency).
PORT STATE SERVICE VERSION
3306/tcp open mysql MySQL 8.0.43
| mysql-brute:
| Accounts: No valid accounts found
|_ Statistics: Performed 50009 guesses in 23 seconds, average tps: 2082.3
| mysql-info:
| Protocol: 10
| Version: 8.0.43
| Thread ID: 21
| Capabilities flags: 65535
| Some Capabilities: ConnectWithDatabase, Support41Auth, SupportsLoadDataLocal, LongPassword, SupportsTransactions, IgnoreSigpipes, FoundRows, SwitchToSSLAfterHandshake, InteractiveClient, DontAllowDatabaseTableColumn, Speaks41ProtocolOld, IgnoreSpaceBeforeParenthesis, LongColumnFlag, SupportsCompression, Speaks41ProtocolNew, ODBCClient, SupportsMultipleStatments, SupportsAuthPlugins, SupportsMultipleResults
| Status: Autocommit
| Salt: :{\x02!2\x0E\x06N\x01'"\x0D9-\x17W]XM\x13
|_ Auth Plugin Name: caching_sha2_password
| mysql-enum:
| Valid usernames:
| root:<empty> - Valid credentials
| netadmin:<empty> - Valid credentials
| guest:<empty> - Valid credentials
| user:<empty> - Valid credentials
| web:<empty> - Valid credentials
| sysadmin:<empty> - Valid credentials
| administrator:<empty> - Valid credentials
| webadmin:<empty> - Valid credentials
| admin:<empty> - Valid credentials
| test:<empty> - Valid credentials
|_ Statistics: Performed 10 guesses in 1 seconds, average tps: 10.0
|_mysql-vuln-cve2012-2122: ERROR: Script execution failed (use -d to debug)
MAC Address: 00:0C:29:FD:CC:20 (VMware)
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 23.60 seconds
Interaction with the MySQL Server…
1
root@kakarot$ mysql -u neo -h 172.16.10.143 -pNeo@3301
The key MySQL databases are
sys(management metadata) andinformation_schema(information about all databases)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
mysql> show databases;
+--------------------+
| Database |
+--------------------+
| information_schema |
| mysql |
| performance_schema |
| sys |
| users |
+--------------------+
mysql> use sys;
mysql> show tables;
+-----------------------------------------------+
| Tables_in_sys |
+-----------------------------------------------+
| host_summary |
| host_summary_by_file_io |
| host_summary_by_file_io_type |
| host_summary_by_stages |
| host_summary_by_statement_latency |
| host_summary_by_statement_type |
| innodb_buffer_stats_by_schema |
| innodb_buffer_stats_by_table |
| innodb_lock_waits |
| io_by_thread_by_latency |
| io_global_by_file_by_bytes |
| io_global_by_file_by_latency |
| io_global_by_wait_by_bytes |
| io_global_by_wait_by_latency |
| latest_file_io |
| memory_by_host_by_current_bytes |
| memory_by_thread_by_current_bytes |
| memory_by_user_by_current_bytes |
| memory_global_by_current_bytes |
| memory_global_total |
| metrics |
| processlist |
| ps_check_lost_instrumentation |
| schema_auto_increment_columns |
| schema_index_statistics |
| schema_object_overview |
| schema_redundant_indexes |
| schema_table_lock_waits |
| schema_table_statistics |
| schema_table_statistics_with_buffer |
| schema_tables_with_full_table_scans |
| schema_unused_indexes |
| session |
| session_ssl_status |
| statement_analysis |
| statements_with_errors_or_warnings |
| statements_with_full_table_scans |
| statements_with_runtimes_in_95th_percentile |
| statements_with_sorting |
| statements_with_temp_tables |
| sys_config |
| user_summary |
| user_summary_by_file_io |
| user_summary_by_file_io_type |
| user_summary_by_stages |
| user_summary_by_statement_latency |
| user_summary_by_statement_type |
| version |
| wait_classes_global_by_avg_latency |
| wait_classes_global_by_latency |
| waits_by_host_by_latency |
| waits_by_user_by_latency |
| waits_global_by_latency |
| x$host_summary |
| x$host_summary_by_file_io |
| x$host_summary_by_file_io_type |
| x$host_summary_by_stages |
| x$host_summary_by_statement_latency |
| x$host_summary_by_statement_type |
| x$innodb_buffer_stats_by_schema |
| x$innodb_buffer_stats_by_table |
| x$innodb_lock_waits |
| x$io_by_thread_by_latency |
| x$io_global_by_file_by_bytes |
| x$io_global_by_file_by_latency |
| x$io_global_by_wait_by_bytes |
| x$io_global_by_wait_by_latency |
| x$latest_file_io |
| x$memory_by_host_by_current_bytes |
| x$memory_by_thread_by_current_bytes |
| x$memory_by_user_by_current_bytes |
| x$memory_global_by_current_bytes |
| x$memory_global_total |
| x$processlist |
| x$ps_digest_95th_percentile_by_avg_us |
| x$ps_digest_avg_latency_distribution |
| x$ps_schema_table_statistics_io |
| x$schema_flattened_keys |
| x$schema_index_statistics |
| x$schema_table_lock_waits |
| x$schema_table_statistics |
| x$schema_table_statistics_with_buffer |
| x$schema_tables_with_full_table_scans |
| x$session |
| x$statement_analysis |
| x$statements_with_errors_or_warnings |
| x$statements_with_full_table_scans |
| x$statements_with_runtimes_in_95th_percentile |
| x$statements_with_sorting |
| x$statements_with_temp_tables |
| x$user_summary |
| x$user_summary_by_file_io |
| x$user_summary_by_file_io_type |
| x$user_summary_by_stages |
| x$user_summary_by_statement_latency |
| x$user_summary_by_statement_type |
| x$wait_classes_global_by_avg_latency |
| x$wait_classes_global_by_latency |
| x$waits_by_host_by_latency |
| x$waits_by_user_by_latency |
| x$waits_global_by_latency |
+-----------------------------------------------+
mysql> select * from version;
+-------------+---------------+
| sys_version | mysql_version |
+-------------+---------------+
| 2.1.3 | 8.0.43 |
+-------------+---------------+
Common Queries For Enumeration…
| Command | Description |
|---|---|
SELECT schema_name FROM information_schema.schemata; |
List all databases available on the server |
SELECT table_schema, table_name FROM information_schema.tables; |
List all tables in all databases |
SELECT table_name, column_name, data_type FROM information_schema.columns; |
Show all columns and their types for each table |
SELECT User, Host, plugin, authentication_string FROM mysql.user; |
Enumerate MySQL users, their hosts, authentication plugins, and password hashes |
SHOW GRANTS FOR '<username>'@'<host>'; |
Display privileges of a specific user |
SELECT version(); |
Show the MySQL server version |
SELECT @@hostname, @@datadir, @@basedir; |
Get system information about the database server |
MSSQL
Microsoft SQL (MSSQL) is a database system from Microsoft that helps store and manage data. It was first made for Windows, but now it can also run on Linux and MacOS. Many developers and administrators like to use it for .NET applications because it works very well with the .NET framework. A common tool to work with MSSQL is SQL Server Management Studio (SSMS). You can install it with MSSQL or on its own, on any computer, not just the server. This sometimes allows pentesters to find systems where credentials are saved, giving them access to the database. Other tools for connecting to MSSQL include mssql-cli, SQL Server PowerShell, HeidiSQL, SQLPro, and Impacket’s mssqlclient.py, which is very useful for testing security.
MSSQL also includes several system databases that show how the server is organized. Master stores the main system info, Model is a template for creating new databases, msdb manages jobs and alerts, tempdb keeps temporary objects, and Resource is read-only and contains system objects. Understanding MSSQL, its clients, and these system databases is essential for both security testing and managing databases.
MSSQL defaults to
NT SERVICE\MSSQLSERVER, uses Windows Authentication (via SAM/AD), connections aren’t encrypted by default, and compromised accounts can enable lateral movement.
Check for dangerous MSSQL settings like
unencrypted client connections,self-signed certificates, use of named pipes, and weak or defaultsacredentials that may be left enabled.
Footprinting the Service
Nmap MSSQL Scan…
1
root@kakarot$ sudo nmap --script ms-sql-info,ms-sql-empty-password,ms-sql-xp-cmdshell,ms-sql-config,ms-sql-ntlm-info,ms-sql-tables,ms-sql-hasdbaccess,ms-sql-dac,ms-sql-dump-hashes --script-args mssql.instance-port=1433,mssql.username=sa,mssql.password=,mssql.instance-name=MSSQLSERVER -sV -p 1433 172.16.10.143
NMAP scan reveals MSSQL
hostname,instance name,version, and enablednamed pipes, this is important details to note.
We can also use Metasploit to run
scanner/mssql/mssql_pingauxiliary scanner and gather useful info during footprinting.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
msf6 auxiliary(scanner/mssql/mssql_ping) > set rhosts 172.16.10.143
rhosts => 172.16.10.143
msf6 auxiliary(scanner/mssql/mssql_ping) > run
[*] 172.16.10.143: - SQL Server information for 172.16.10.143:
[+] 172.16.10.143: - ServerName = CORP-SQL
[+] 172.16.10.143: - InstanceName = MAINDB01
[+] 172.16.10.143: - IsClustered = No
[+] 172.16.10.143: - Version = 13.0.5026.0
[+] 172.16.10.143: - tcp = 1433
[+] 172.16.10.143: - np = \\CORP-SQL\pipe\sql\primary
[*] 172.16.10.143: - Scanned 1 of 1 hosts (100% complete)
[*] Auxiliary module execution completed
Interact with MSSQL…
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
root@kakarot$ python3 mssqlclient.py neo@172.16.10.143 -windows-auth
Impacket v0.9.22 - Copyright 2020 SecureAuth Corporation
Password:
[*] Encryption required, switching to TLS
[*] ENVCHANGE(DATABASE): Old Value: master, New Value: master
[*] ENVCHANGE(LANGUAGE): Old Value: , New Value: us_english
[*] ENVCHANGE(PACKETSIZE): Old Value: 4096, New Value: 16384
[*] INFO(CORP-SQL): Line 1: Changed database context to 'master'.
[*] INFO(CORP-SQL): Line 1: Changed language setting to us_english.
[*] ACK: Result: 1 - Microsoft SQL Server (140 5026)
[!] Press help for extra shell commands
SQL> select name from sys.databases
name
--------------------------------------------------------------------------------------
master
tempdb
model
msdb
saiyanDB
Transact-SQL(T-SQL) is an extended SQL query language used by Microsoft SQL Server and Azure SQL databases.
Oracle TNS
The Oracle Transparent Network Substrate (TNS) is a network-protocol that allows communicaton between applications and oracle databases. It is compatible with a variety of network protocols such as IPX/SPX or TCP/IP, and supports built-in encryption of data to prevent loss during transfer. Newer versions now also offer support for IPv6 and SSL/TLS to secure access, balance load, resolve names and manage connections well. TNS also provides additional encryption protection between clients and servers to help prevent unauthorized access or attack over a network. It also has performance monitoring, error logging, workload management and fault tolerance tools built in that are indispensable in order to have secure database operations and good overall system performance.
Oracle TNS comes with a default setup that can change depending on the version, but some settings are standard. The listener usually runs on TCP port 1521, supports several network protocols, and can handle multiple network interfaces. Older versions like 8i and 9i allow remote management, while 10g and 11g do not. For basic security, the listener only accepts connections from authorized hosts and encrypts communication.
There are two main configuration files: tnsnames.ora on the client side, which links service names to network addresses, and listener.ora on the server side, which defines how the listener manages requests. Each database or service has its own entry in tnsnames.ora with its name and location. Oracle TNS works with other services, and sometimes default passwords are used, which can be risky. To improve security, a PL/SQL Exclusion List can block specific PL/SQL packages from running.
Oracle TNS Configuration Settings…
| Setting | Description (Clear and Simple) | File |
|---|---|---|
| DESCRIPTION | Defines all connection details for the database, including address, port, and service information. | tnsnames.ora |
| ADDRESS | Specifies the network address (IP or hostname and port) of the database server. | Both |
| PROTOCOL | Specifies the communication protocol used for the connection, such as TCP/IP. | Both |
| PORT | The port number used for communication between client and server (usually 1521). | Both |
| CONNECT_DATA | Contains internal connection details such as the service name or SID. | tnsnames.ora |
| INSTANCE_NAME | The name of the specific database instance that the client wants to connect to. | tnsnames.ora |
| SERVICE_NAME | The logical name of the database service that clients use to connect. | Both |
| SERVER | Defines the type of server connection: dedicated (one client per process) or shared (multiple clients). | tnsnames.ora |
| USER | The username used to authenticate and log in to the database. | tnsnames.ora |
| PASSWORD | The password for the database user (rarely stored here for security reasons). | tnsnames.ora |
| SECURITY | Defines the type or level of security used for the connection (e.g., SSL/TLS). | Both |
| VALIDATE_CERT | Determines whether the SSL/TLS certificate should be validated during the connection. | Both |
| SSL_VERSION | Specifies which version of SSL/TLS protocol is used for encryption. | Both |
| CONNECT_TIMEOUT | The maximum time (in seconds) allowed for the client to establish a connection before timing out. | Both |
| RECEIVE_TIMEOUT | The maximum time the client waits for a response from the server after sending a request. | Both |
| SEND_TIMEOUT | The maximum time allowed for sending data from the client to the server. | Both |
| SQLNET.EXPIRE_TIME | The time interval (in seconds) after which the server checks if a connection is still active. | listener.ora |
| TRACE_LEVEL | Sets the level of detail for tracing and diagnostic logs. | listener.ora |
| TRACE_DIRECTORY | The directory where trace (debug) files are stored. | listener.ora |
| TRACE_FILE_NAME | The name of the trace file used for logging detailed connection or error information. | listener.ora |
| LOG_FILE | The name of the log file that records listener activities and connection events. | listener.ora |
Footprinting the Service
Setting up…
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
#!/usr/bin/env bash
set -euo pipefail
ORACLE_BASIC_URL="https://download.oracle.com/otn_software/linux/instantclient/214000/instantclient-basic-linux.x64-21.4.0.0.0dbru.zip"
ORACLE_SQLPLUS_URL="https://download.oracle.com/otn_software/linux/instantclient/214000/instantclient-sqlplus-linux.x64-21.4.0.0.0dbru.zip"
DL_DIR="$HOME/Downloads/instantclient"
TARGET="/opt/oracle"
ODAT_REPO="https://github.com/quentinhardy/odat.git"
ODAT_DIR="$HOME/odat"
VENV="$ODAT_DIR/venv"
sudo apt update
sudo apt install -y wget unzip git python3-venv python3-pip build-essential libgmp-dev python3-scapy libaio1
mkdir -p "$DL_DIR"
cd "$DL_DIR"
wget -c "$ORACLE_BASIC_URL"
wget -c "$ORACLE_SQLPLUS_URL"
sudo mkdir -p "$TARGET"
sudo unzip -o "$(basename "$ORACLE_BASIC_URL")" -d "$TARGET"
sudo unzip -o "$(basename "$ORACLE_SQLPLUS_URL")" -d "$TARGET"
IC_DIR="$(find "$TARGET" -maxdepth 1 -type d -name 'instantclient*' | head -n1)"
if [ -z "$IC_DIR" ]; then
echo "InstantClient directory not found under $TARGET" >&2
exit 1
fi
echo "$IC_DIR" | sudo tee /etc/ld.so.conf.d/oracle-instantclient.conf >/dev/null
sudo ldconfig
if ! grep -q "instantclient" ~/.bashrc 2>/dev/null; then
cat >> ~/.bashrc <<EOF
# Oracle Instant Client
export LD_LIBRARY_PATH="$IC_DIR:\$LD_LIBRARY_PATH"
export PATH="$IC_DIR:\$PATH"
EOF
fi
export LD_LIBRARY_PATH="$IC_DIR:$LD_LIBRARY_PATH"
export PATH="$IC_DIR:$PATH"
if [ -d "$ODAT_DIR" ]; then
(cd "$ODAT_DIR" && git pull --rebase || true)
else
git clone "$ODAT_REPO" "$ODAT_DIR"
fi
sudo chown -R "$(id -un)":"$(id -un)" "$ODAT_DIR"
git config --global --add safe.directory "$ODAT_DIR" || true
python3 -m venv "$VENV"
source "$VENV/bin/activate"
pip install --upgrade pip
pip install python-libnmap cx_Oracle pycryptodome colorlog termcolor passlib
cd "$ODAT_DIR"
git submodule init || true
git submodule update --recursive || true
echo "Done. To use ODAT:"
echo " source $VENV/bin/activate"
echo " cd $ODAT_DIR"
echo "If you opened a new terminal, run: source ~/.bashrc to load Oracle paths."
Use this bash script to download a few packages and tools or try
sudo apt install odat!
Determine if the installation was successful…
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
root@kakarot$ ./odat.py -h
usage: odat.py [-h] [--version]
{all,tnscmd,tnspoison,sidguesser,snguesser,passwordguesser,utlhttp,httpuritype,utltcp,ctxsys,externaltable,dbmsxslprocessor,dbmsadvisor,utlfile,dbmsscheduler,java,passwordstealer,oradbg,dbmslob,stealremotepwds,userlikepwd,smb,privesc,cve,search,unwrapper,clean}
...
_ __ _ ___
/ \| \ / \|_ _|
( o ) o ) o || |
\_/|__/|_n_||_|
-------------------------------------------
_ __ _ ___
/ \ | \ / \ |_ _|
( o ) o ) o | | |
\_/racle |__/atabase |_n_|ttacking |_|ool
-------------------------------------------
By Quentin Hardy (quentin.hardy@protonmail.com or quentin.hardy@bt.com)
positional arguments:
{all,tnscmd,tnspoison,sidguesser,snguesser,passwordguesser,utlhttp,httpuritype,utltcp,ctxsys,externaltable,dbmsxslprocessor,dbmsadvisor,utlfile,dbmsscheduler,java,passwordstealer,oradbg,dbmslob,stealremotepwds,userlikepwd,smb,privesc,cve,search,unwrapper,clean}
Choose a main command
all to run all modules in order to know what it is possible to do
tnscmd to communicate with the TNS listener
tnspoison to exploit TNS poisoning attack (SID required)
sidguesser to know valid SIDs
snguesser to know valid Service Name(s)
passwordguesser to know valid credentials
utlhttp to send HTTP requests or to scan ports
httpuritype to send HTTP requests or to scan ports
utltcp to scan ports
ctxsys to read files
externaltable to read files or to execute system commands/scripts
dbmsxslprocessor to upload files
dbmsadvisor to upload files
utlfile to download/upload/delete files
dbmsscheduler to execute system commands without a standard output
java to execute system commands
passwordstealer to get hashed Oracle passwords
oradbg to execute a bin or script
dbmslob to download files
stealremotepwds to steal hashed passwords thanks an authentication sniffing (CVE-2012-3137)
userlikepwd to try each Oracle username stored in the DB like the corresponding pwd
smb to capture the SMB authentication
privesc to gain elevated access
cve to exploit a CVE
search to search in databases, tables and columns
unwrapper to unwrap PL/SQL source code (no for 9i version)
clean clean traces and logs
options:
-h, --help show this help message and exit
--version show program's version number and exit
Scan the default Oracle TNS listener port…
1
root@kakarot$ sudo nmap -p1521 -sV <target-ip> --open
SID bruteforcing with Nmap…
1
root@kakarot$ sudo nmap -p1521 -sV <target-ip> --open --script oracle-sid-brute
Full Oracle Database Services Scan Using ODAT…
1
root@kakarot$ ./odat.py all -s <target-ip>
Log In With SQLplus
1
root@kakarot$ sqlplus user/pass@IP/XE
If you see the error
sqlplus: error while loading shared libraries: libsqlplus.so: cannot open shared object file: No such file or directory. Run the provided fix command to configure the Oracle library path.
1
root@kakarot$ sudo sh -c "echo /usr/lib/oracle/12.2/client64/lib > /etc/ld.so.conf.d/oracle-instantclient.conf";sudo ldconfig
You can use SQLPlus commands to manually enumerate the database, for example, list all tables or show the current user’s privileges.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
SQL> select table_name from all_tables;
TABLE_NAME
------------------------------
USERS
LOGIN_HISTORY
ACCESS_LOGS
SYSTEM_SETTINGS
KAKAROT_TASKS
KAKAROT_NOTES
SESSION_AUDIT
SECURITY_EVENTS
ORACLE_METADATA
TMP_UPLOADS
BACKUP_JOBS
...SNIP...
SQL> select * from user_role_privs;
USERNAME GRANTED_ROLE ADM DEF OS_
------------------------------ ------------------------------ --- --- ---
KAKAROT CONNECT NO YES NO
KAKAROT RESOURCE NO YES NO
KAKAROT DBA NO YES NO
The user account could potentially be used to escalate privileges to SYSDBA, granting full administrative control over the database.
1
root@kakarot$ sqlplus user/pass@IP/XE as sysdba
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
SQL> select * from user_role_privs;
USERNAME GRANTED_ROLE ADM DEF OS_
------------------------------ ------------------------------ --- --- ---
SYS ADM_PARALLEL_EXECUTE_TASK YES YES NO
SYS APEX_ADMINISTRATOR_ROLE YES YES NO
SYS AQ_ADMINISTRATOR_ROLE YES YES NO
SYS AQ_USER_ROLE YES YES NO
SYS AUTHENTICATEDUSER YES YES NO
SYS CONNECT YES YES NO
SYS CTXAPP YES YES NO
SYS DATAPUMP_EXP_FULL_DATABASE YES YES NO
SYS DATAPUMP_IMP_FULL_DATABASE YES YES NO
SYS DBA YES YES NO
SYS DBFS_ROLE YES YES NO
<SNIP>
Extract Oracle password hashes from SYS.USER$ for offline cracking…
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
SQL> select name, password from sys.user$;
NAME PASSWORD
------------------------------ ------------------------------
ADMIN A1B2C3D4E5F67890
GUEST
APP_USER
REPORTING
MAINT 9F8E7D6C5B4A3210
ANALYTICS
AUDIT_ROLE
DBA 7AAC88BB99CC7766
SYSBACKUP D4E5F6A7B8C90123
ARCHIVE_ADMIN
SERVICE 00FF11EE22DD33CC
NAME PASSWORD
------------------------------ ------------------------------
MONITOR
REPL_SYNC BBCCDDEEFF001122
OPS
...SNIP...
We can try uploading a web shell if the target has a web server running, but we’ll need to know where the web server’s root directory is, if we have an idea of the system type, we can start with common default paths like
/var/www/htmlfor Linux orC:\inetpub\wwwrootfor Windows.
Always start with safe-looking files, like a simple text file, to test uploads and avoid triggering antivirus or intrusion detection systems.
1
2
3
4
5
root@kakarot$ echo "It's good to be king" > testfile.txt
root@kakarot$ ./odat.py utlfile -s IP -d XE -U user -P pass --sysdba --putFile C:\\inetpub\\wwwroot testfile.txt ./testfile.txt
[1] (IP:1521): Put the ./testfile.txt local file in the C:\inetpub\wwwroot folder like testfile.txt on the <IP> server
[+] The ./testfile.txt file was created on the C:\inetpub\wwwroot directory on the <IP> server like the testfile.txt file
1
2
3
root@kakarot$ curl -X GET http://IP/testfile.txt
It's good to be king !
IPMI
The Intelligent Platform Management Interface (IPMI) is basically a built-in system that helps administrators look after servers, even when those servers are completely off or frozen. It doesn’t depend on the operating system or the CPU; instead, it connects straight to the hardware through the network. That means an admin can still check on a machine, change BIOS settings before startup, power it on or off remotely, or dig into it after a crash. IPMI also keeps an eye on things like temperature, voltage, fan speed, and power supply health. It logs hardware activity and can send alerts if something goes wrong. All it really needs is power and a network cable to stay active.
The idea came from Intel in 1998, and since then it’s become standard across most major brands likle Dell, HP, Cisco, Supermicro, and many others. Behind the scenes, IPMI runs on a few main pieces: the Baseboard Management Controller (BMC), communication buses like ICMB and IPMB, its own bit of memory, and several network and serial interfaces that let everything talk to each other.
Footprinting the Service
IPMI runs on
UDPport623and is handled byBaseboard Management Controllers(BMCs), usually embeddedARMsystems runningLinux. Many servers come with a BMC (HP iLO, Dell DRAC, Supermicro IPMI) or allow adding one. Accessing a BMC gives almost full control over the server: monitor, reboot, power off, or reinstall the OS. BMCs often provide a web console, SSH/Telnet access, and the IPMI network protocol. Securing BMCs is critical, as compromise is nearly equivalent to physical access.
Scanning With NMAP…
1
root@kakarot$ sudo nmap -sU --script ipmi-version -p 623 <target-ip>
Scanning Using Metasploit…
1
2
msf6 > use auxiliary/scanner/ipmi/ipmi_version
msf6 auxiliary(scanner/ipmi/ipmi_version) > set rhosts <target-ip>
Many BMCs still use default passwords, giving attackers easy access.
| Product | Username | Password |
|---|---|---|
| Dell iDRAC | root | calvin |
| HP iLO | Administrator | randomized 8-character string with numbers and uppercase letters |
| Supermicro IPMI | ADMIN | ADMIN |
Dumping Hashes Using Metasploit…
Sometimes the default password on a BMC won’t work, but there’s a weakness in the
RAKPprotocol ofIPMI 2.0. Before authentication, the server sends a saltedSHA1orMD5hash of the user’s password, which can be captured. UsingMetasploit, an attacker can retrieve this hash, and then crack it offline withHashcatmode7300to gain full control of the BMC. No quick fix for this flaw, so the safest approach is to use strong, complex passwords and restrict network access to the BMC. In real tests, accessing a BMC often allows control of critical servers and their web management tools.
1
2
msf6 > use auxiliary/scanner/ipmi/ipmi_dumphashes
msf6 auxiliary(scanner/ipmi/ipmi_dumphashes) > set rhosts <target-ip>
Log In…
1
root@kakarot$ ipmitool -H <target-ip> -U user -P passwd shell
SSH
Secure Shell (SSH) is a secure way for two computers to connect and communicate over the internet, even on risky networks. It works through port TCP 22 and keeps data protected from hackers by encrypting it. SSH is supported on all major systems like Linux, macOS, and Windows. There are two main versions: SSH-1, which is outdated and less secure, and SSH-2, which offers better encryption and safety. Using SSH, you can manage remote servers, send commands, move files, or forward ports. To connect, users must verify their identity through one of several methods, such as passwords or public-key authentication, which are the most common and secure ways to log in remotely.
1
root@kakarot$ cat /etc/ssh/sshd_config | grep -v "#" | sed -r '/^\s*$/d' #Default Configuration
The sshd_config file controls the OpenSSH server and only has a few default settings. One of these, X11 forwarding, had a command injection vulnerability in version 7.2p1 (2016). Since we don’t need a graphical interface to manage servers, it’s safer to keep X11 forwarding disabled.
Dangerous Settings…
| Setting | Description |
|---|---|
PasswordAuthentication yes |
Lets users log in using a password. This allows brute-force or guessing attacks if passwords are weak. |
PermitEmptyPasswords yes |
Accepts accounts that have no password. Anyone who knows the username can log in. |
PermitRootLogin yes |
Allows direct login as the root (full admin) user, giving total control if compromised. |
Protocol 1 |
Uses the old SSH version 1, which is insecure and has known weaknesses. |
X11Forwarding yes |
Lets remote graphical apps show on your machine. This can leak input/display data or be abused. |
AllowTcpForwarding yes |
Lets SSH forward TCP connections (create tunnels/proxies), which can be misused to bypass controls. |
PermitTunnel |
Allows creating network tunnels (layer 2/3). Can be used to route traffic through the server. |
DebianBanner yes |
Shows an OS/distribution banner at login, revealing system type to anyone who connects. |
Footprinting the Service
SSH-Audit…
One useful tool for fingerprinting SSH servers is ssh-audit, which inspects both client and server configurations, reports general information and the encryption algorithms in use, and can reveal weaknesses that might later be exploited at the cryptographic level.
1
2
3
root@kakarot$ git clone https://github.com/jtesta/ssh-audit.git && cd ssh-audit #We can use this!
root@kakarot$ sudo apt install ssh-audit #Or this!
root@kakarot$ ./ssh-audit.py <target-ip>
Change Authentication Method…
1
2
3
4
5
root@kakarot$ ssh -v kakarot@IP
CustomSSH_1.0-custom, CryptoLib 2.3.4
debug1: Reading configuration data /etc/ssh/ssh_config
...SNIP...
debug1: Authentications that can continue: publickey,password,keyboard-interactive #Authentication MethodS
We can specify the authentication method with the SSH client option
PreferredAuthentications.
1
2
3
4
5
6
7
8
9
root@kakarot$ ssh -v kakarot@172.16.10.143 -o PreferredAuthentications=password
OpenSSH_8.2p1 Ubuntu-4ubuntu0.3, OpenSSL 1.1.1f 31 Mar 2020
debug1: Reading configuration data /etc/ssh/ssh_config
...SNIP...
debug1: Authentications that can continue: publickey,password,keyboard-interactive
debug1: Next authentication method: password
kakarot@172.16.10.143's password:
Rsync
Rsync is a fast, reliable tool for copying files both on the same machine and across a network. It’s smart, if a file already exists at the destination, Rsync only sends the parts that changed, which saves time and bandwidth. People often use it for backups and mirroring, and it normally runs on port 873 or can be run securely over SSH. However, if Rsync is left open or misconfigured, an attacker might list and download files from a shared folder (sometimes even without logging in), during a pentest, finding credentials and checking for password reuse can let you pull sensitive files.
Scanning Rsync With Nmap…
1
root@kakarot$ sudo nmap -sV -p 873 <target-ip>
Interacting With The Service Using Ncat…
1
2
3
4
5
root@kakarot$ nc -nv <target-ip> 873
<SNIP>
#list
it IT Scripts #Open Share
@RSYNCD: EXIT
Enumerating an Open Share…
1
2
3
4
5
6
root@kakarot$ rsync -av --list-only rsync://IP/it
receiving incremental file list
drwxr-xr-x 48 2022/09/19 09:43:10 .
-rw-r--r-- 0 2022/09/19 09:34:50 runme.sh
drwx------ 54 2022/09/19 09:43:10 .ssh
We could
syncall files to our attack host with the command:
1
root@kakarot$ rsync -av rsync://IP/dev
If Rsync is configured to use SSH to transfer files…
1
root@kakarot$ rsync -av -e ssh user@IP:/path/to/dir /local/path #From Target To Attacker
1
root@kakarot$ rsync -av -e ssh /local/path/ user@IP:/path/to/dir #From Attacker to target
1
root@kakarot rsync -av -e "ssh -p 2222" user@IP:/path /local/path #If a non-standard port is in use for SSH
R-Services
R-services are an old set of Unix tools that let computers talk to each other and run commands over a network. They were popular before SSH, but unlike SSH they send data in plain text (like telnet), so anyone sniffing the network could grab passwords or login info. These services use ports 512–514 and are accessed with r-commands such as rcp, rexec, rlogin, rsh, rstat, ruptime, and rwho. You don’t see them much today, but they still pop up sometimes on systems like Solaris or AIX, so it’s useful to know what they do and why they’re risky.
| Command | Service Daemon | Port | Transport | Description |
|---|---|---|---|---|
| rcp | rshd | 514 | TCP | Copies files or folders between machines. Works like cp but over the network and won’t warn if files are overwritten. |
| rsh | rshd | 514 | TCP | Opens a remote shell to run commands without logging in. Relies on .rhosts / hosts.equiv for trust. |
| rexec | rexecd | 512 | TCP | Runs a command on a remote host using username/password over the network (unencrypted). Trusted files can bypass authentication. |
| rlogin | rlogind | 513 | TCP | Logs in to a remote Unix-like host (like telnet). Can skip authentication if the host is trusted via .rhosts / hosts.equiv. |
/etc/hosts.equivis a file listing trusted hosts. Users from these hosts can access the system automatically, without needing a password.
1
2
3
4
root@kakarot$ cat /etc/hosts.equiv
# <hostname> <local username>
mee kakarot
R-Services Scanning With Nmap….
1
2
3
4
5
6
7
root@kakarot$ sudo nmap -sV -p 512,513,514 <target-ip>
<SNIP>
PORT STATE SERVICE VERSION
512/tcp open exec?
513/tcp open login?
514/tcp open tcpwrapped
Logging in Using Rlogin…
1
2
3
4
5
root@kakarot$ rlogin <target-ip> -l neo
Last login: D M 2 00:00:00 from localhost
[neo@localhost ~]$
Use
rwhoonUDPport513to see allactive sessionson thenetwork.
1
2
3
4
root@kakarot$ rwho
root db:pts/0 M 2 00:00
neo pc04:tty1 M 2 00:00 00:00
Use the
ruserscommand to get detailed info about all logged-in users on the network, includingusername,host,TTY,login time,idle time, and remote host
1
2
3
root@kakarot$ rusers -al <target-ip>
kakarot <target-ip>:console M 5 00:00 00:00
RDP
Think of RDP as a magic window that lets you sit in front of a Windows computer, even if you’re miles away. You can see what’s on the screen and control it as if it were right in front of you. Normally, it talks through TCP port 3389, but sometimes it uses UDP too.
To make the connection, the computer you want to control and any firewalls in between must say “okay.” If your network uses NAT (which is super common at home or in offices), you’ll need the computer’s public IP and make sure the right ports are open.
Since Windows Vista, RDP has been protecting your session with strong encryption, so your login and activity are safe. Still, some systems use weaker encryption, and the certificates are self-signed. That’s why your computer sometimes shows warnings, it can’t be 100% sure the other side is legit.
RDP is already built into Windows servers. You don’t need to install anything. Just switch it on through Server Manager, and by default, it only lets in computers that authenticate properly with Network Level Authentication NLA.
RDP Scanning With Nmap…
1
root@kakarot$ nmap -sV -sC <target-ip> -p3389 --script rdp*
Using Nmap’s
--packet-tracewithRDPleaves identifiablecookies(mstshash=nmap) on the server. Security systems likeEDRor threat hunters can detect them and mayblock your accesson well-protected networks.
1
root@kakarot$ nmap -sV -sC <target-ip> -p3389 --packet-trace --disable-arp-ping -n
Cisco CX Security Labs made a
Perlscript called rdp-sec-check.pl that can quickly check an RDP server’s security settings by analyzing its handshake, no authentication needed.
1
2
3
4
5
6
7
root@kakarot$ sudo cpan
<SNIP>
cpan[1]> install Encoding::BER
<SNIP>
1
2
root@kakarot$ git clone https://github.com/CiscoCXSecurity/rdp-sec-check.git && cd rdp-sec-check
root@kakarot$ ./rdp-sec-check.pl <target-ip>
Authentication and connection to RDP server…
1
root@kakarot$ xfreerdp /u:user /p:"pass" /v:IP
WinRM
WinRM (Windows Remote Management) is a built-in Windows protocol that lets you control a remote computer using commands. It uses SOAP to communicate with remote machines and applications, so it needs to be enabled and set up starting from Windows 10. WinRM uses ports 5985 (HTTP) and 5986 (HTTPS) instead of the older ports 80 and 443.
A related tool, WinRS, allows you to run commands on the remote system directly and is even included by default in Windows 7. This means you can execute commands on another server without physically being there.
Scanning WinRM Using Nmap…
1
root@kakarot$ nmap -sV -sC <target-ip> -p5985,5986 --disable-arp-ping -n
Interacting With WinRM…
1
root@kakarot$ evil-winrm -i <target-ip> -u user -p pass
WMI
Windows Management Instrumentation, or WMI, is a tool from Microsoft that lets you manage and control almost every setting on a Windows computer, whether it’s a PC or a server. Think of it as the main interface for administering and keeping Windows machines running smoothly. You can use it through PowerShell, VBScript, or the WMIC console. WMI isn’t just one program, it’s a collection of programs and databases that work together to give you full control over the system.
Interacting With WinRM…
1
root@kakarot$ /usr/share/doc/python3-impacket/examples/wmiexec.py user:"pass"@IP "hostname"
Service & Port
| Service Name | Port | TCP/UDP | Protocol Full Name | Description |
|---|---|---|---|---|
| HTTP | 80 | TCP | HyperText Transfer Protocol | Standard web traffic |
| HTTPS | 443 | TCP | HyperText Transfer Protocol Secure | Secure web traffic using SSL/TLS |
| FTP | 21 | TCP | File Transfer Protocol | File Transfer Protocol – control channel |
| FTP Data | 20 | TCP | File Transfer Protocol | File Transfer Protocol – data transfer |
| NetBIOS Name Service | 137 | UDP | Network Basic Input/Output System | NetBIOS name resolution |
| NetBIOS Datagram | 138 | UDP | Network Basic Input/Output System | NetBIOS datagram service |
| NetBIOS Session | 139 | TCP | Network Basic Input/Output System | NetBIOS session service |
| SMB / CIFS | 445 | TCP | Server Message Block / Common Internet File System | File sharing (Windows) |
| RPC / Portmapper | 111 | TCP/UDP | Remote Procedure Call | Remote Procedure Call / service mapping |
| NFS | 2049 | TCP/UDP | Network File System | Network File System for file sharing |
| SMTP | 25 | TCP | Simple Mail Transfer Protocol | Email sending protocol |
| SMTP (submission) | 587 | TCP | Simple Mail Transfer Protocol | Email submission (secure) |
| SMTP (SSL) | 465 | TCP | Simple Mail Transfer Protocol Secure | Secure SMTP over SSL |
| IMAP | 143 | TCP | Internet Message Access Protocol | Email retrieval protocol |
| IMAPS | 993 | TCP | Internet Message Access Protocol Secure | Secure IMAP over SSL |
| POP3 | 110 | TCP | Post Office Protocol 3 | Email retrieval protocol |
| POP3S | 995 | TCP | Post Office Protocol 3 Secure | Secure POP3 over SSL |
| SNMP | 161 | UDP | Simple Network Management Protocol | Network monitoring and management |
| MySQL | 3306 | TCP | MySQL Database Protocol | MySQL database service |
| MS-SQL | 1433 | TCP | Microsoft SQL Server Protocol | Microsoft SQL Server database service |
| Oracle DB | 1521 | TCP | Oracle Net Services | Oracle database listener |
| IPMI | 623 | UDP | Intelligent Platform Management Interface | Remote server management (IPMI) |
| SSH | 22 | TCP | Secure Shell | Secure shell remote access |
| Rsync | 873 | TCP | Remote Sync | File synchronization service |
| Syslog | 514 | UDP | System Logging Protocol | System logging service |
| Rexec | 512 | TCP | Remote Execution | Remote command execution (r-services) |
| Rlogin | 513 | TCP | Remote Login | Remote login service (r-services) |
| RSH | 514 | TCP | Remote Shell | Remote shell (r-services) |
Finally… it’s over.
